Need LED layout drawing for lightbox?

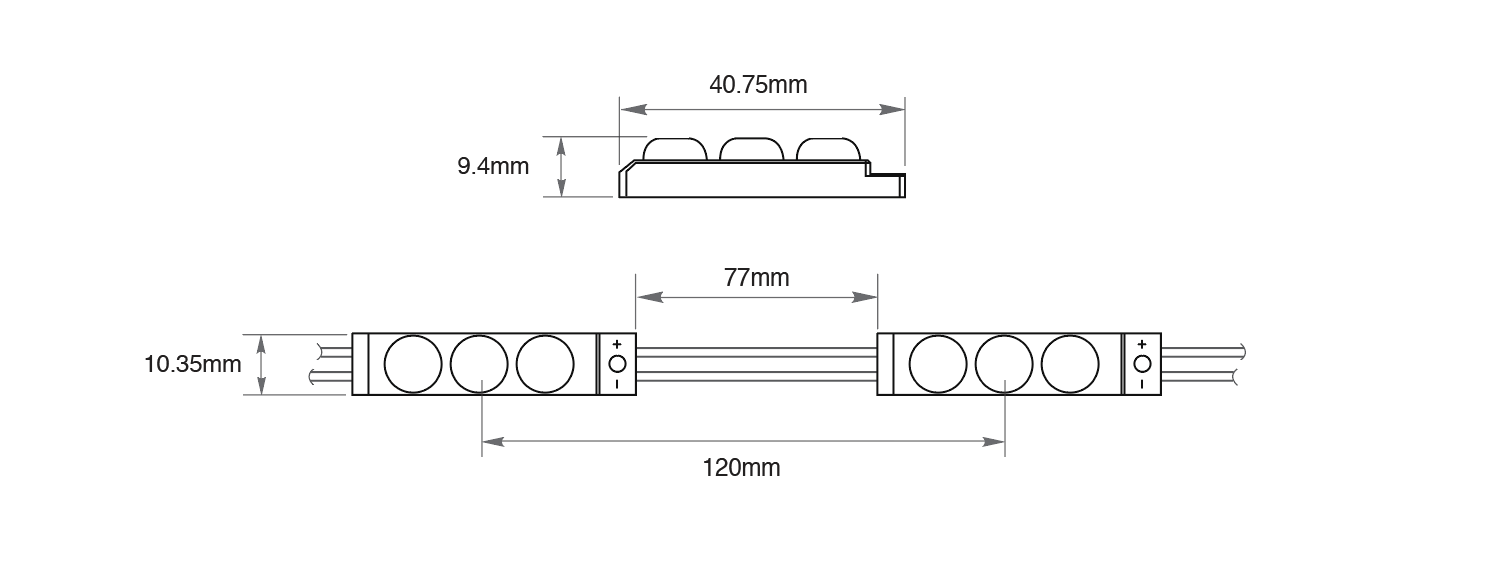

Dimensions(mm)
| Item Code | Power | Voltage | Colour | CCT(K) | Efficacy(lm/W) |
|---|---|---|---|---|---|
| SA 6301 | 0.72W | DC12V | Pure White | 7,000 | 93 |
| SA 6302 | 0.72W | DC12V | Warm White | 3,000 | 93 |
| SA 6303 | 0.72W | DC12V | Cool White | 10,000 | 93 |

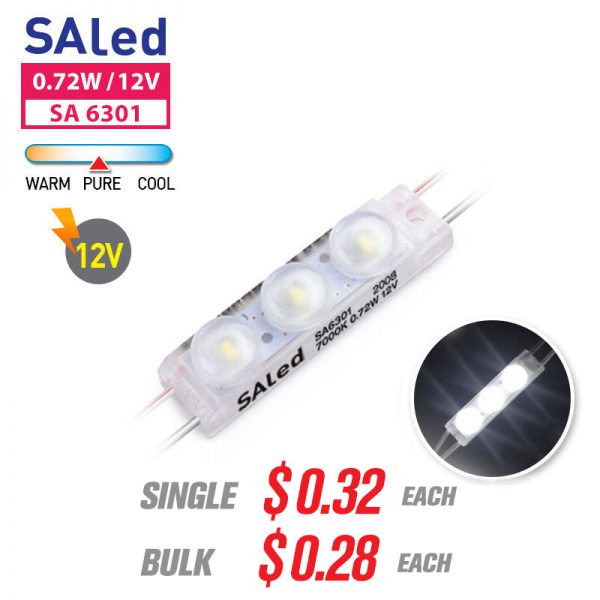

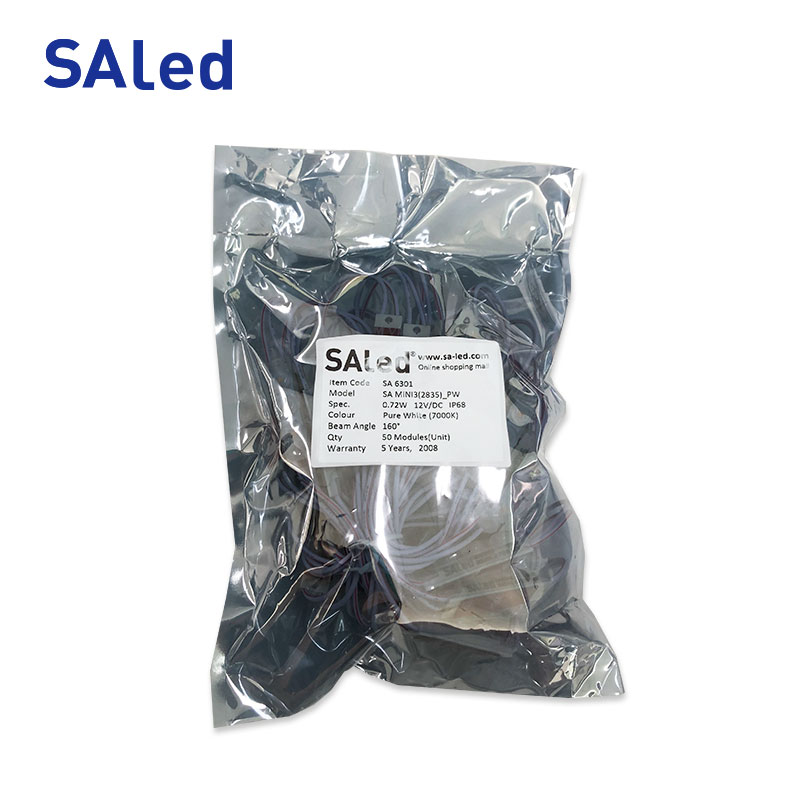

SA S-MINI 3 LED 0.72W 12V 7000K (50 modules / unit)
Availability: 1553 in stock
$23.94 $15.96 excl. g.s.t
Key Features & Benefits:
- Item Code: SA 6301
- Constant voltage
Compatible- An ABS injection moulding process ensures excellent waterproof performance
- Low power consumption, high brightness, and long service life
- Certification :
- 160° Wide bean angle.
- 5 Years warranty
SUITABLE FOR SIGN DEPTH
From 50mm Deep
FOR LETTER & LIGHTBOX
| Name | Range | Discount |
| SA 6301 | 1 - 19 |
$15.96 as price per unit |
| SA 6301 | 20 - 999 |
$14.19 as price per unit |
ALTERNATIVE PRODUCT

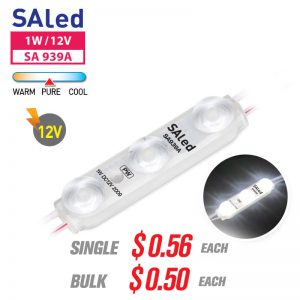

- Item Code: SA 939A
- Constant current
- IP67 rated
- Non-DALI Compatible
- Certification :
- Diamondback 170° optic lens
- Low power consumption and high brightness
- 5 Years warranty

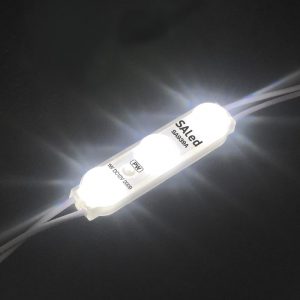

SA R-UV 3 LED 1.0W 12V 6500K (50 modules / unit)
Key Features & Benefits:
SUITABLE FOR SIGN DEPTH
From 70mm Deep
FOR LETTER & LIGHTBOX
Availability: 5431 in stock
Must have Items
-
LED Wire UL 18AWG Red & White (50M/Roll)
$61.26$51.05 excl. g.s.t
Key Features & Benefits:
- Item Code: SA 913
- Application: Internal wiring of appliances
- Characteristics : Rating : 300V, 80°C ,16 AWG
- Extruded construction, flat ribbon-type wire
- Certifications : AWM 2468 VW-1 18AWG
- TIN_COATED
-
LED Wire UL16AWG Red & White (50M/Roll)
$85.12$70.93 excl. g.s.t
Key Features & Benefits:
- Item Code: SA 915
- Application: Internal wiring of appliances
- Characteristics : Rating : 300V, 80°C ,16 AWG
- Extruded construction, flat ribbon-type wire
- Certifications: AWM 2468 VW-1 16AWG
- TIN_COATED
-
NEW 2 WAGO Connectors 1 Box (100 connectors)
$30.81 excl. g.s.t
Key Features & Benefits:
- Item Code: SA 926
- Warning: Corrosion may occur when used near salt water and areas such as coastal regions
- 2 WAY (100ea /1 BOX)
- 221-412, 2-Conductor splicing connectors, transparent housing, orange lever
- Connect any combination of solid, stood and flexible wires faster and more reliably
- Minimize space consumption in the junction box by 40% compared to 222 Series
Power Calculator
| MODULES | Indoor Outdoor |
| Weight | 290 g |
|---|---|
| Dimensions | 40.75 × 10.35 × 9.4 mm |
| MODEL | SA S-MINI 3 LED |
| POWER | 0.72W |
| VOLTAGE | DC 12V |
| CURRENT(A) | 0.06A |

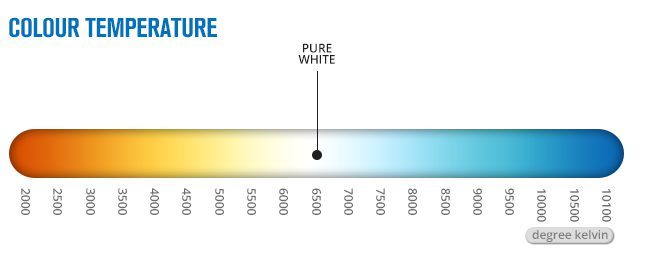

| CCT(K) | 7000K |
| LUMEN/WATT | 93lm/W |
| VIEWING ANGLE | 160º WIDE |
| CRI | 80 |

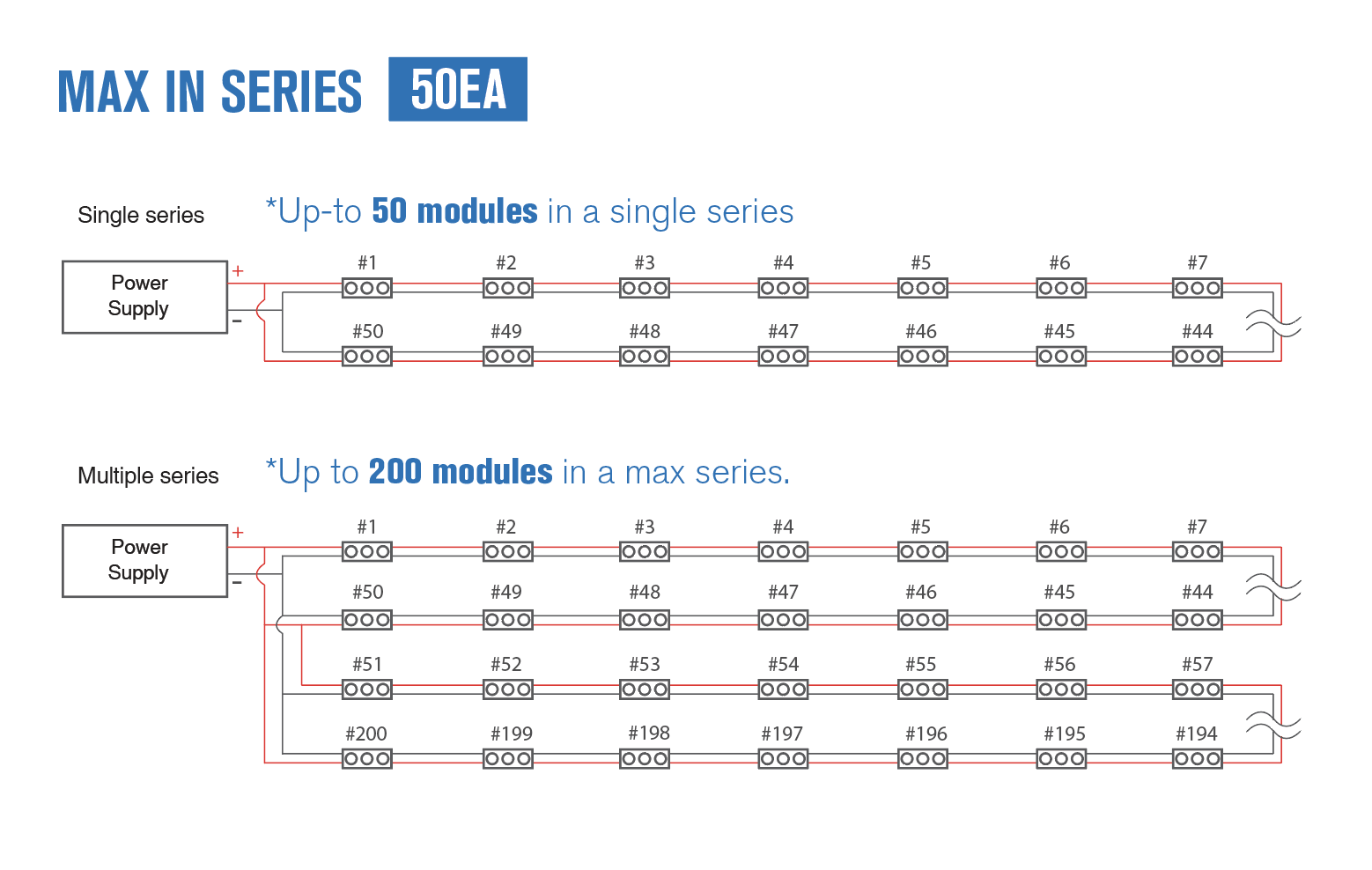

| MAX IN SERIES | 50 EA |
| WORKING TEMPERATURE | -25 °C ~ +60 °C |
| STORAGE TEMPERATURE | -20 °C ~ +70 °C |
| IP RATING | IP67 |
| WARRANTY | 5 YEARS |
