Sale
SALE
0.36W
12V
6500K
62 in stock
| 1 - 9 | $29.00 ( $0.58 / EACH ) |
| 10 + | $27.50 ( $0.55 / EACH ) |

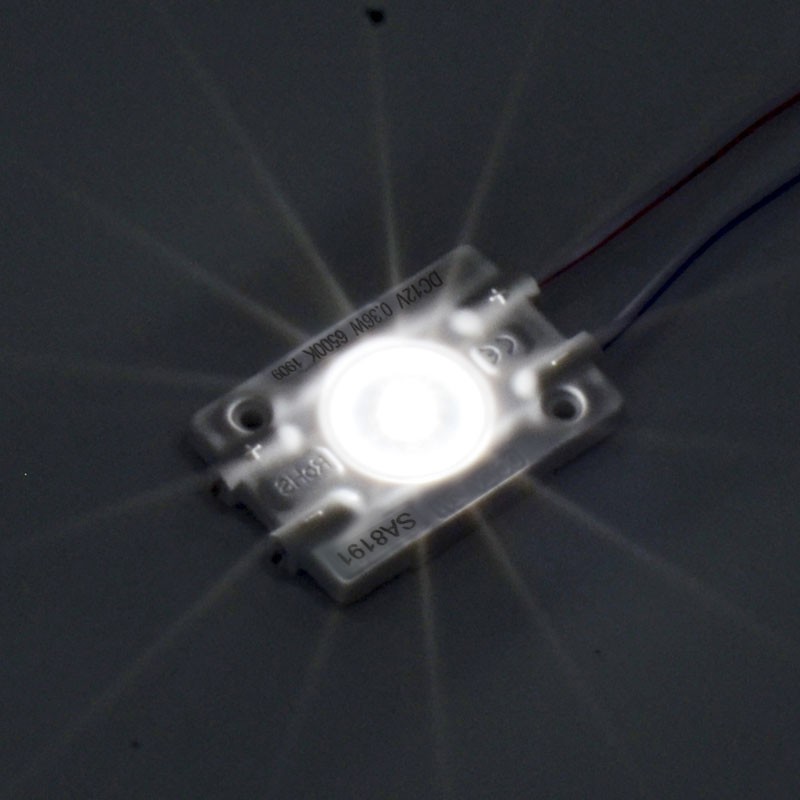

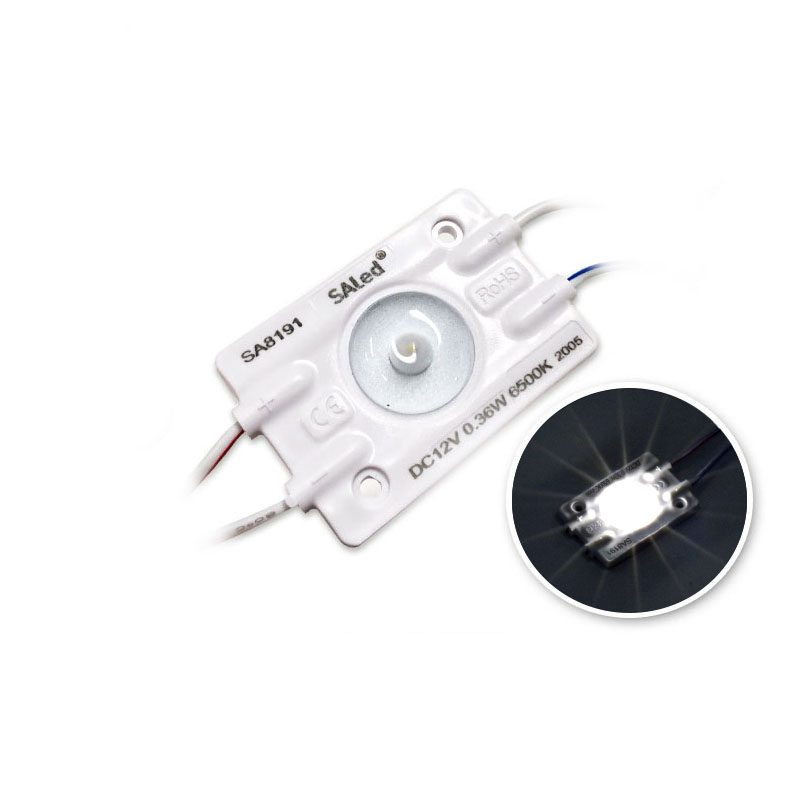

SA G-Back Lit 1 LED 0.36W 12V 6500K IP65 G2 (50 modules / unit)
$29.00 Excl. GST
DOWNLOADS
Check out the latest product specifications and guides.
Product Specification
Installation Guide
IES File
Power Calculator
Power Calculator
Easy to estimate your power supply needs.
Our power calculator helps you determine the power supply needed for your LED light projects.
*Simply answer the questions below, and you'll receive a quick recommendation.
Enter the required number of the LEDs or Metre
MODULESWhere will the power supplies be installed?
e.g) LED modules : 57 modules
Must Have Items (Accessories)
ITEM CODE:
SA 913
ITEM CODE:
SA 915
Key Features & Benefits
- Item Code: SA 8191 G2
- Please do not use by mixing with different generations (G1, G2, and G3)
- Constant current
- IP65 rated
- Non-DALI Compatible
- 160° wide beam angle
- Certification :
- 5 Years warranty
SUITABLE FOR SIGN DEPTH
From 40mm Deep
FOR LIGHTBOX
Additional information
| Weight | 500 g |
|---|---|
| Dimensions | 300 × 270 × 50 mm |
| POWER |
0.36W |
| VOLTAGE |
DC 12V |
| CURRENT(A) |
0.03A |
| LUMINOUS FLUX |
32lm |
| EFFICIENCY |
90lm/W |
| CCT(K) |
6500K |
| CRI |
70 |
| VIEWING ANGLE |
160º WIDE |
| IP RATING |
IP 65 |
| DALI |
Non-DALI Compatible |
| DIMMABLE |
DIMMABLE |
| MAX IN SERIES |
50 EA |
| WORKING TEMPERATURE |
-25 °C ~ 55 °C |
| STORAGE TEMPERATURE |
-25 °C ~ 70 °C |
| WARRANTY |
5 YEAR |
Description

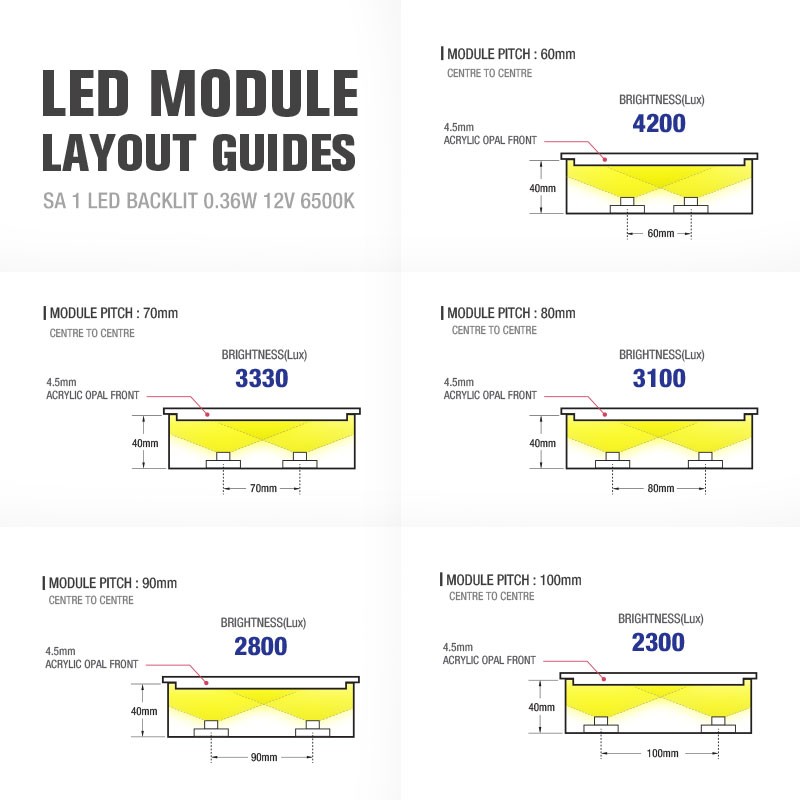

DIMENSION & PITCH
See the module dimensions and spacing between module to module.
LED Dimension
MAX IN SERIES
50EA
*Up to 50 modules in a single series

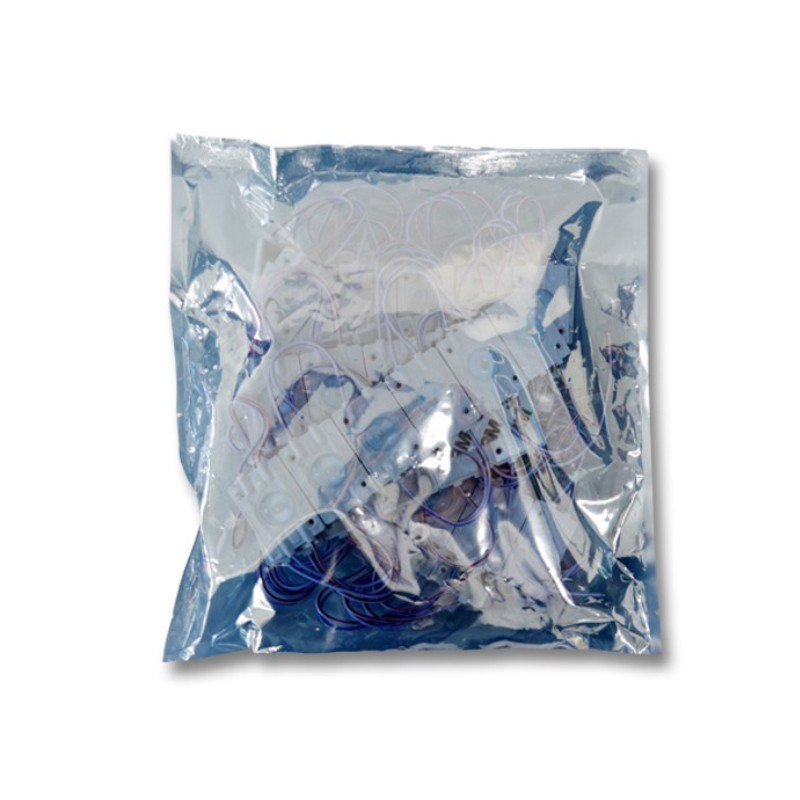

PACKING SPECIFICATION
BAG |
CARTON |
|
|---|---|---|
|
Pack |
50 modules/bag |
30 bag/carton |
|
Dimension(L x W x h) |
300x270x50mm |
530x390x280mm |
|
Weight(g) |
500g |
16kg |
