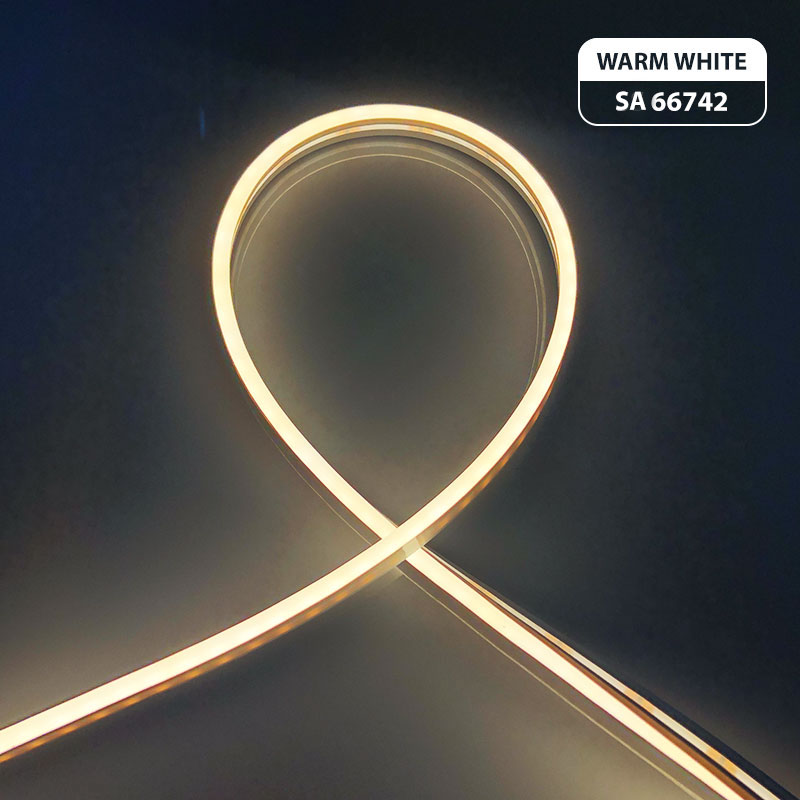

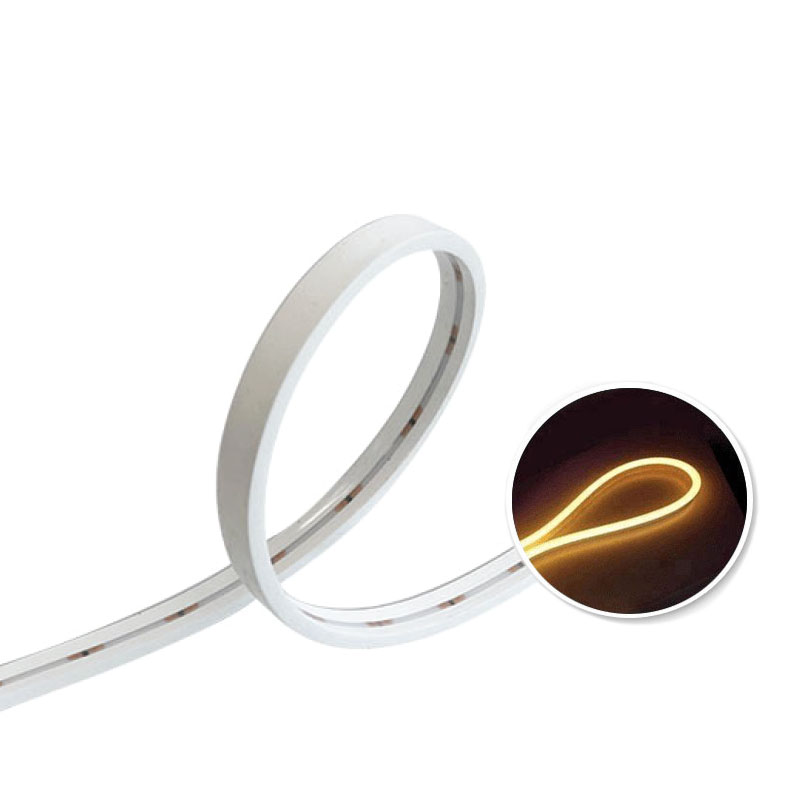

SA NSF2-4M Slim LED Neon Flex 12V 3000K IP67 (9.6W/M, 5 Metre/roll)

ITEM CODE: SA 66742

$43.67 Excl. GST

30 in stock

1 - 4 $43.67
5 + $38.21
Find suitable power supplier ? (click)

DOWNLOADS

Check out the latest product specifications and guides.

Product Specification

Installation Guide

IES File

Power Calculator

Power Calculator

Easy to estimate your power supply needs.

Our power calculator helps you determine the power supply needed for your LED light projects.

*Simply answer the questions below, and you'll receive a quick recommendation.

Use one power supplier per single piece of neon flex over 20M.

Enter the required number of the LEDs or Metre

METRE

Where will the power supplies be installed?

e.g) Strip or Neon Flex : 8 Metres

Must Have Items (Accessories)

ITEM CODE: SA 914

LED Wire UL 18AWG Red & Black With PVC(50M/Roll)

179 in stock

$67.00 Excl. GST
Add to cart
Weight 3.053 g
Dimensions 200 × 200 × 100 mm
LENGTH

50 Metre

STANDARD

18 AWG

NUMBER OF CONDUCTOR

2

NO & DIA CONDUCTOR

41 / 0.157mm

INSULATION DIA(mm)

2.0 ± 0.05mm

SHEATH DIA(mm)

4.7 ± 0.05mm

ITEM CODE: SA 9422

TS-1564 Soldering Station 48W

7 in stock

$135.16 Excl. GST
Add to cart
Weight 0.27 g
Dimensions 150 × 115 × 92 mm
POWER

48W

TEMPERATURE RANGE

150 – 450°C

SOLDERING IRON SIZE

0.5mm

SOLDERING IRON TYPE

Conical

MAIN VOLTAGE RANGE

240V

ITEM CODE: SA 947

Neon Cutter_26mm

25 in stock

$23.69 Excl. GST
Add to cart
Weight 328 g
Dimensions 250 × 220 mm
MATERIAL

Stainless Steel

CUTTING DIA

MAX.26MM

ITEM CODE: SA 9501

SA NSF2-4M End Cap With Hole ( 10 PACK )

45 in stock

$1.92 Excl. GST
Add to cart
Weight 0.06 g
Dimensions 70 × 100 mm
ITEM CODE: SA 9502

SA NSF2-4M End Cap Without Hole ( 10 PACK )

234 in stock

$1.92 Excl. GST
Add to cart
Weight 0.06 g
Dimensions 70 × 100 mm
ITEM CODE: SA 95A5

SA LED Neon flex Silicone Glue_45ml

90 in stock

$6.07 Excl. GST
Add to cart
Weight 0.5 g
Dimensions 130 × 25 mm
ITEM CODE: SA 926-J

2 WAGO Connectors 1 Jar (100 connectors)

558 in stock

Box -100 Connectors $0.32 / each
$32.01 Excl. GST
Add to cart
Weight 170.8 g
Dimensions 65 × 65 × 120 mm
BRAND

Wago

NUMBER OF WAYS

2

TERMINATION METHOD

SPRING CAGE

MAX. TEMPERATURE

105 Degree

WIRE RANGE

AWG 24-12

Key Features & Benefits

  • Item Code: SA 66742
  • High Quality 2835 LED
  • IP67 rated
  • Side bending and small size for easy modelling
  • 12V DC low voltage, safe and reliable
  • 2 x End cap Sets (with hole + without hole cap)      included
  • Cutting mark by every 25mm
  • DALI Compatible
  • 5 years Warranty

Dimension

Additional information
Dimensions 8 × 5000 × 12 mm
POWER

9.6W

VOLTAGE

DC 12V

CURRENT(A)

0.8A

LUMINOUS FLUX

670lm

EFFICIENCY

24.65lm/W

CCT(K)

3000K

CRI

80

VIEWING ANGLE

115°

IP RATING

IP 67

DIMMABLE

DIMMABLE

CUTTABLE

25mm

LENGTH

5M

WARRANTY

5 YEAR

Description





Special Note

ROLL LENGTHS_Any claim for short supply will only be considered while
the NEON FLEX is in one length, to prove any manufacturing discrepancy.

*Note that once you cut the roll it will void any claim for short supply of the product.

Troubleshooting Common Faults

Problems Reasons Solutions
No illumination No electricity supply Ensure LED driver is working
Automatic power protection from the open or short circuit in output of the power supply Fix the short circuit problem
Wrong connection of power supply
Partial illumination Using a switching mode power supply Make it as follows: Don’t use switching mode power supplies
Wire connection mistake Check connections
Brightness of LED is inconsistent for inconsistent Power overloaded Replace with a power supply that delivers 125% of current required to power the product
Voltage drop due to exceeding max-in-series limit Adhere to the max-in-series limit specified on the product page
LED Flickering Connection point fault Fix bad connection point
Use a proper LED driver Replace a new power supply

*Note that should be cut and reconnected with end connectors for installation to avoid defects due to moisture penetration. The steps below indicate are possible way of sealing the end:

Installation steps

Cut the neon flex Weld the wire to the PCB board First put silicone glue inside
of the plug, and quick connector
then push into the neon flex
Wipe off the excess glue and
wait for the glue to solidify.



[ Important Notice ] How to solder to LED neon flex





   Cutting Mark By Every 25 mm

Note. Soldering Required

Important Note

Dimensions(mm)
