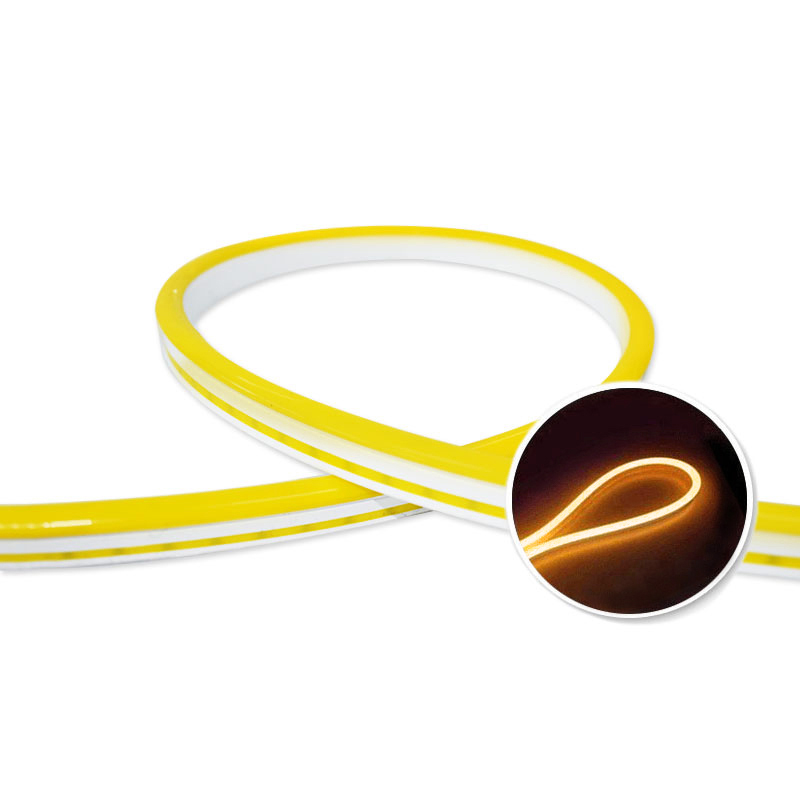

SA NSR2-6 Slim LED Neon Flex 12V Yellow IP67 (11.52W/M, 5 Metre/roll)
Original price was: $186.42.$76.79Current price is: $76.79. Excl. GST
DOWNLOADS
Check out the latest product specifications and guides.
Product Specification
Installation Guide
IES File
Power Calculator
Power Calculator
Easy to estimate your power supply needs.
Our power calculator helps you determine the power supply needed for your LED light projects.
*Simply answer the questions below, and you'll receive a quick recommendation.
Use one power supplier per single piece of neon flex over 20M.
Enter the required number of the LEDs or Metre
METREWhere will the power supplies be installed?
e.g) Strip or Neon Flex : 8 Metres
Must Have Items (Accessories)
ITEM CODE:
SA 914
LED Wire UL 18AWG Red & Black With PVC(50M/Roll)
159 in stock
Original price was: $80.40.$67.00Current price is: $67.00. Excl. GST
ITEM CODE:
SA 9422
ITEM CODE:
SA 947
ITEM CODE:
SA 9582
SA NSR2-6 End Cap With Hole Straight ( 5 PACK )
94 in stock
Original price was: $3.87.$3.13Current price is: $3.13. Excl. GST
ITEM CODE:
SA 9585
SA NSR2-6 End Cap With Hole Bottom ( 5 PACK )
284 in stock
Original price was: $3.87.$3.13Current price is: $3.13. Excl. GST
ITEM CODE:
SA 9586
SA NSR2-6 End Cap Without Hole (10 PACK)
35 in stock
Original price was: $5.95.$4.81Current price is: $4.81. Excl. GST
ITEM CODE:
SA 9587
ITEM CODE:
SA 9581
SA NSR2-6 White Jacket Cable
437 in stock
Original price was: $1.13.$0.68Current price is: $0.68. Excl. GST
ITEM CODE:
SA 958B
SA NSR2-6 End Cap Yellow ( 20 PACK )
372 in stock
Original price was: $11.90.$9.62Current price is: $9.62. Excl. GST
ITEM CODE:
SA 95A5
ITEM CODE:
SA 926-J
2 WAGO Connectors 1 Jar (100 connectors)
533 in stock
| Box -100 Connectors | $0.32 / each |
$32.01 Excl. GST
Key Features & Benefits
- Item Code: SA 66687
- High-quality circuit for stable and reliable performance
- IP67 rated
- Side bending and small size for easy modeling
- 12V DC low voltage, safe and reliable
- 3 x End cap Sets (with hole + without hole cap)
& 10pcs clip & screw included - Cutting mark by every 10.4mm
- DALI Compatible
- 5 years Warranty
Dimension
Additional information
| Dimensions | 8 × 5000 × 12 mm |
|---|---|
| POWER |
11.52W |
| VOLTAGE |
DC 12V |
| CURRENT(A) |
0.96A |
| LUMINOUS FLUX |
62lm |
| EFFICIENCY |
5.38lm/W |
| COLOUR |
YELLOW |
| CRI |
80 |
| VIEWING ANGLE |
139° |
| IP RATING |
IP 67 |
| DIMMABLE |
DIMMABLE |
| CUTTABLE |
10.4mm |
| LENGTH |
5M |
| WARRANTY |
5 YEAR |
Description
 |
Special Note ROLL LENGTHS_Any claim for short supply will only be considered while |
| Problems | Reasons | Solutions |
|---|---|---|
| No illumination | No electricity supply | Ensure LED driver is working |
| Automatic power protection from the open or short circuit in output of the power supply | Fix the short circuit problem | |
| Wrong connection of power supply | ||
| Partial illumination | Using a switching mode power supply | Make it as follows: Don’t use switching mode power supplies |
| Wire connection mistake | Check connections | |
| Brightness of LED is inconsistent for inconsistent | Power overloaded | Replace with a power supply that delivers 125% of current required to power the product |
| Voltage drop due to exceeding max-in-series limit | Adhere to the max-in-series limit specified on the product page | |
| LED Flickering | Connection point fault | Fix bad connection point |
| Use a proper LED driver | Replace a new power supply |
*Note that should be cut and reconnected with end connectors for installation to avoid defects due to moisture penetration. The steps below indicate are possible ways of sealing the end:
Installation steps
 |
 |
 |
 |
| Cut the neon flex | Weld the wire to the PCB board | First put silicone glue inside of the plug, and quick connector then push into the neon flex |
Wipe off the excess glue and wait for the glue to solidify. |
[ Important Notice ] How to solder to LED neon flex
|
Cutting Mark By Every 10.4 mm
|
Note. Soldering Required
Important Note
|
Installation Precautions 1. All installation and connection must be conducted by qualified electrician. 2. A 12V DC class 2 power supply unit must be used with this LED NEON FLEX. 3. Disconnect the mains power before installing or servicing to avoid electrocution. 4. For a wet location installation you must seal all possible water entry points including covers with clear silicone. |
Dimensions(mm)
