Custom Order (cover) For S*******D_12062024 $3,641.00 Excl. GST
NEW
16W
24V
Click to enlarge

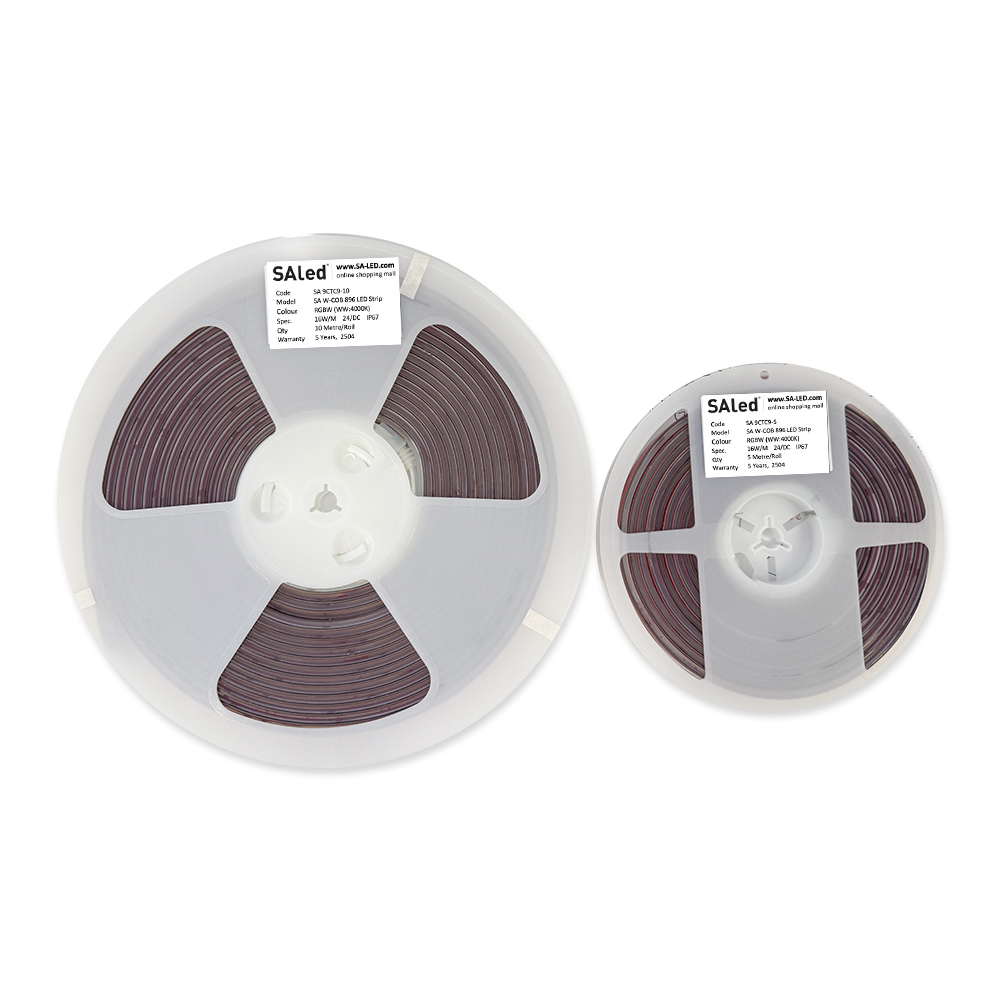

SA W-COB 896 24V RGBW IP67 (16W/M, 5 Metre/Roll)

ITEM CODE: SA 9CTC9

$65.08 Excl. GST

13 in stock

Unit -5 Metres $13.02 / metre
Find suitable power supplier ? (click)
Add to wishlist
Compare

DOWNLOADS

Check out the latest product specifications and guides.

Product Specification

Installation Guide

IES File

Power Calculator

Power Calculator

Easy to estimate your power supply needs.

Our power calculator helps you determine the power supply needed for your LED light projects.

*Simply answer the questions below, and you'll receive a quick recommendation.

Enter the required number of the LEDs or Metre

METRE

Where will the power supplies be installed?

e.g) Strip or Neon Flex : 8 Metres

Must Have Items (Accessories)

Compare
Quick view
ITEM CODE: SA 148

SA LT-M8+M4-3A RGBW Controller

82 in stock

$38.34 Excl. GST
Add to cart
Weight 135 g
Dimensions 130 × 200 × 20 mm
BRAND

LTECH
INPUT VOLTAGE

12 – 24VDC
MAX CURRENT LOAD

3A X 4CH, MAX 12A
MAX OUTPUT POWER

(0~36…72W ) x 4CH
RADIO FREQUENCY

433.92MHz
CONTROLLER DIMENSIONS

125x 33 x 20 mm
REMOTE DIMENSIONS

104 X 58 X 9 mm
WORKING TEMPERATURE

-30 °C ~ 60 °C
REMOTE OUTPUT POWER

3V ( Battery CR2032)
WARRANTY

5 YEAR
Compare
Quick view
ITEM CODE: SA 348

SA W-SK100 RGBW Controller

13 in stock

$13.63 Excl. GST
Add to cart
Weight 102 g
Dimensions 130 × 130 × 30 mm
INPUT VOLTAGE

12 – 24VDC
MAX CURRENT LOAD

3A X 4CH, MAX 16A
MAX OUTPUT POWER

192W(DC12V), 240W(24V)
CONTROLLER DIMENSIONS

100 x 47 x 23mm
REMOTE DIMENSIONS

112 x 48 x 15mm
WORKING TEMPERATURE

-30 °C ~ 60 °C
REMOTE OUTPUT POWER

3V ( Battery 2AAA)
NEW
Compare
Quick view
ITEM CODE: SA 9838

SA W-COB LED Strip Connector_Wire both ends for RGBW 12mm (10 Pack)

13 in stock

$28.72 Excl. GST
Add to cart
Weight 53 g
Dimensions 12.5 × 17.5 mm
APPLICATION

For 12mm
COLOUR

RGBW
For Begin
NEW
Compare
Quick view
ITEM CODE: SA 9828

SA W-COB LED Strip Connector_Wire one end_Left for RGBW 12mm (10 Pack)

17 in stock

$16.41 Excl. GST
Add to cart
Weight 43 g
Dimensions 12.5 × 17.5 mm
APPLICATION

For 12mm
COLOUR

RGBW
For End
NEW
Compare
Quick view
ITEM CODE: SA 9828-1

SA W-COB LED Strip Connector_Wire one end_Right for RGBW 12mm (10 Pack)

18 in stock

$16.41 Excl. GST
Add to cart
Weight 43 g
Dimensions 12.5 × 17.5 mm
APPLICATION

For 12mm
COLOUR

RGBW
NEW
Compare
Quick view
ITEM CODE: SA 9818

SA W-COB LED Strip Connector_Strip to Strip for RGBW 12mm (10 Pack)

13 in stock

$12.31 Excl. GST
Add to cart
Weight 9 g
Dimensions 90 × 130 mm
APPLICATION

For 12mm
COLOUR

RGBW
NEW
Compare
Quick view
ITEM CODE: SA 9193

LED Wire 24AWG 5C for RGBW (50M/Roll)F

98 in stock

$47.71 Excl. GST
Add to cart
Weight 1234 g
Dimensions 165 × 165 × 97 mm
STANDARD

24 AWG
NUMBER OF CONDUCTOR

5
LENGTH

50 Metre
NO & DIA CONDUCTOR

7 / 0.20mm
INSULATION DIA(mm)

1.45 ± 0.05mm

Key Features & Benefits

  • Item Code: SA 9CTC9
  • Super high density, only 4.46mm distance between same color LEDs
  • A dedicated white LED provides a much purer white tone and allows you the option of warm or pure tone
  • Synchronized colour change, driven by RGBW controller
  • The highest quality genuine 3M adhesive tape backing
  • Electronic dimming control supported
  • Cuttable Length – 62.50mm
  • Dimmer and DALI Compatibility
  • RGB+W (Warm White:4000K)
  • Silicone tube encased – IP67 Rated
  • 5 Years Warranty
Additional information
Weight 580 g
Dimensions 320.5 × 20 × 350.5 mm
POWER

16W
VOLTAGE

DC 24V
CURRENT(A)

0.667A
LUMINOUS FLUX

600lm
EFFICIENCY

195lm/W
COLOUR

RGBW
IP RATING

IP 67
CUTTABLE

62.5mm
NUMBER OF LED

896 EA/M (4,480 LEDs)
MAX IN SERIES

5 Metre
WIDTH

15mm
LENGTH

5M
WORKING TEMPERATURE

-20 °C ~ 40 °C
STORAGE TEMPERATURE

-20 ℃ ~ 45 ℃
WARRANTY

5 YEAR

Description

MAX IN SERIES

5 Metre

*Up to 5 Metre in a single series

PACKING SPECIFICATION

BAG

CARTON

Pack

5Metre/bag

–

Dimension(L x W x h)

90x21x7mm

–

Weight(g)

85g

–
