SALE
SA B-FN 60 12V 6500K (14.4W/M, 5 Metre/roll)
$20.89 Excl. GST
SA S-4 LED 1.44W 12V RGB (50 modules / unit)
$36.50 Excl. GST
Weatherproof type connector for LED strips (1 SET)
$0.94 Excl. GST
DOWNLOADS
Check out the latest product specifications and guides.
Product Specification
Installation Guide
IES File
Must Have Items (Accessories)
ITEM CODE:
SA 11115
SA B-FlexA N 60 12V RGB (14.4W/M, 5 Metre/roll)
50 in stock
| 1 - 9 | $53.11 |
| 10 + | $49.98 |
$53.11 Excl. GST
| Weight | 0.14 g |
|---|---|
| Dimensions | 5000 × 10 × 2.5 mm |
| POWER |
14.4W |
| VOLTAGE |
DC 12V |
| CURRENT(A) |
1.2A |
| LUMINOUS FLUX |
245lm |
| EFFICIENCY |
20lm/W |
| COLOUR |
RGB |
| VIEWING ANGLE |
120º STANDARD |
| IP RATING |
IP 22 |
| CUTTABLE |
EVERY 3 LED / 50mm |
| NUMBER OF LED |
60 EA / M. 300 LED |
| MAX IN SERIES |
5 Metre |
| WIDTH |
10mm |
| LENGTH |
5M |
| WORKING TEMPERATURE |
-20 °C ~ +60 °C |
| STORAGE TEMPERATURE |
-30 °C ~ 70 °C |
| WARRANTY |
5 YEAR |
ITEM CODE:
SA 15315
SA B-Zigzag 60 12V RGB (7.2 W/M, 5 Metre/roll)
76 in stock
| 1 - 9 | $47.30 |
| 10 + | $44.52 |
$47.30 Excl. GST
| Weight | 0.4 g |
|---|---|
| Dimensions | 220 × 235 × 0.5 mm |
| POWER |
7.2W |
| VOLTAGE |
DC 12V |
| CURRENT(A) |
0.6A |
| LUMINOUS FLUX |
277lm |
| EFFICIENCY |
112lm/W |
| COLOUR |
RGB |
| VIEWING ANGLE |
120º STANDARD |
| IP RATING |
IP 22 |
| CUTTABLE |
EVERY 3 LED / 50mm |
| NUMBER OF LED |
60 EA / M. 300 LED |
| MAX IN SERIES |
5 Metre |
| WIDTH |
8mm |
| LENGTH |
5M |
| WORKING TEMPERATURE |
-20 °C ~ +60 °C |
| STORAGE TEMPERATURE |
-30 °C ~ 70 °C |
| WARRANTY |
5 YEAR |
ITEM CODE:
SA 71312
SA B-FN 60 12V 3000K (14.4W/M, 5 Metre/roll)
75 in stock
| 1 - 9 | $20.89 |
| 10 + | $19.66 |
$20.89 Excl. GST
| Weight | 0.14 g |
|---|---|
| Dimensions | 5000 × 10 × 2.5 mm |
| POWER |
14.4W |
| VOLTAGE |
DC 12V |
| CURRENT(A) |
1.2A |
| LUMINOUS FLUX |
1440lm |
| EFFICIENCY |
100lm/W |
| CCT(K) |
3000K |
| CRI |
90 |
| VIEWING ANGLE |
120º STANDARD |
| IP RATING |
IP 22 |
| CUTTABLE |
EVERY 3 LED / 50mm |
| NUMBER OF LED |
60 EA/M (300 LEDs) |
| MAX IN SERIES |
5 Metre |
| WIDTH |
8mm |
| LENGTH |
5M |
| WORKING TEMPERATURE |
-20 °C ~ +60 °C |
| STORAGE TEMPERATURE |
-30 °C ~ 70 °C |
| WARRANTY |
5 YEAR |
ITEM CODE:
SA 75321
SA B-SN Zigzag 72 12V 6500K (7.2W/M, 5 Metre/roll) G3
660 in stock
| 1 - 9 | $19.46 |
| 10 + | $18.32 |
$19.46 Excl. GST
| Weight | 0.091 g |
|---|---|
| Dimensions | 5000 × 65 × 1.5 mm |
| POWER |
7.2W |
| VOLTAGE |
DC 12V |
| CURRENT(A) |
0.6A |
| LUMINOUS FLUX |
763lm |
| EFFICIENCY |
106lm/W |
| CCT(K) |
6500K |
| CRI |
80 |
| VIEWING ANGLE |
120º STANDARD |
| IP RATING |
IP 22 |
| CUTTABLE |
EVERY 3 LED / 41.66 MM |
| NUMBER OF LED |
72 EA/M (360 LEDs) |
| MAX IN SERIES |
3 Metre |
| WIDTH |
6.5mm |
| LENGTH |
5M |
| WORKING TEMPERATURE |
-20 °C ~ +60 °C |
| STORAGE TEMPERATURE |
-30 °C ~ 70 °C |
| WARRANTY |
5 YEAR |
ITEM CODE:
SA 74311
SA B-FWS 60 12V 6500K IP65 (14.4W/M, 5 Metre/roll)
14 in stock
| 1 - 9 | $29.46 |
| 10 + | $27.73 |
$29.46 Excl. GST
| Weight | 0.227 g |
|---|---|
| Dimensions | 5000 × 10 × 2.5 mm |
| POWER |
14.4W |
| VOLTAGE |
DC 12V |
| CURRENT(A) |
1.2A |
| LUMINOUS FLUX |
1440lm |
| EFFICIENCY |
100lm/W |
| CCT(K) |
6500K |
| CRI |
90 |
| VIEWING ANGLE |
120º STANDARD |
| IP RATING |
IP 65 |
| CUTTABLE |
EVERY 3 LED / 50mm |
| NUMBER OF LED |
60 EA/M (300 LEDs) |
| MAX IN SERIES |
5 Metre |
| WIDTH |
10mm |
| LENGTH |
5M |
| WORKING TEMPERATURE |
-20 °C ~ +60 °C |
| STORAGE TEMPERATURE |
-30 °C ~ 70 °C |
| WARRANTY |
5 YEAR |
ITEM CODE:
SA 71311
SA B-FN 60 12V 6500K (14.4W/M, 5 Metre/roll)
47 in stock
| 1 - 9 | $20.89 |
| 10 + | $19.66 |
$20.89 Excl. GST
| Weight | 140 g |
|---|---|
| Dimensions | 5000 × 10 × 25 mm |
| POWER |
14.4W |
| VOLTAGE |
DC 12V |
| CURRENT(A) |
1.2A |
| LUMINOUS FLUX |
1440lm |
| EFFICIENCY |
100lm/W |
| CCT(K) |
6500K |
| CRI |
80 |
| VIEWING ANGLE |
120º STANDARD |
| IP RATING |
IP 22 |
| CUTTABLE |
EVERY 3 LED / 50mm |
| NUMBER OF LED |
60 EA/M (300 LEDs) |
| MAX IN SERIES |
5 Metre |
| WIDTH |
8mm |
| LENGTH |
5M |
| WORKING TEMPERATURE |
-20 °C ~ +60 °C |
| STORAGE TEMPERATURE |
-30 °C ~ 70 °C |
| WARRANTY |
5 YEAR |
ITEM CODE:
SA 71312-A
SA B-FN60 12V 4000K (14.4W/M, 5 Metre/roll)
179 in stock
| 1 - 19 | $20.89 |
| 20 + | $19.66 |
$20.89 Excl. GST
| Weight | 0.14 g |
|---|---|
| Dimensions | 5000 × 10 × 2.5 mm |
| POWER |
14.4W |
| VOLTAGE |
DC 12V |
| CURRENT(A) |
1.2A |
| LUMINOUS FLUX |
1440lm, 1500lm |
| EFFICIENCY |
100lm/W |
| CCT(K) |
4000K |
| CRI |
90 |
| VIEWING ANGLE |
120º STANDARD |
| IP RATING |
IP 22 |
| CUTTABLE |
EVERY 3 LED / 50mm |
| NUMBER OF LED |
60 EA/M (300 LEDs) |
| MAX IN SERIES |
5 Metre |
| WIDTH |
8mm |
| LENGTH |
5M |
| WORKING TEMPERATURE |
-20 °C ~ +60 °C |
| STORAGE TEMPERATURE |
-30 °C ~ 70 °C |
| WARRANTY |
5 YEAR |
ITEM CODE:
SA 78343
SA B-Mini Zigzag 120 12V Red (7.2W/M, 5 Metre/roll)
104 in stock
| 1 - 9 | $32.77 |
| 10 + | $30.84 |
$32.77 Excl. GST
| Weight | 84 g |
|---|---|
| Dimensions | 5000 × 5 × 1.5 mm |
| POWER |
7.2W |
| VOLTAGE |
DC 12V |
| CURRENT(A) |
0.6A |
| EFFICIENCY |
29lm/W |
| COLOUR |
RED |
| CRI |
80 |
| VIEWING ANGLE |
120º STANDARD |
| IP RATING |
IP 22 |
| CUTTABLE |
EVERY 3 LED / 25mm |
| NUMBER OF LED |
120 EA/M (600 LEDs) |
| MAX IN SERIES |
3 Metre |
| WIDTH |
5mm |
| LENGTH |
5M |
| WORKING TEMPERATURE |
-20 °C ~ +60 °C |
| STORAGE TEMPERATURE |
-20 °C ~ 70 °C |
| WARRANTY |
5 YEAR |
ITEM CODE:
SA 78344
SA B-Mini Zigzag 120 12V Blue (7.2W/M, 5 Metre/roll)
71 in stock
| 1 - 9 | $32.77 |
| 10 + | $30.84 |
$32.77 Excl. GST
| Weight | 84 g |
|---|---|
| Dimensions | 5000 × 5 × 1.5 mm |
| POWER |
7.2W |
| VOLTAGE |
DC 12V |
| CURRENT(A) |
0.6A |
| EFFICIENCY |
22lm/W |
| COLOUR |
BLUE |
| CRI |
80 |
| VIEWING ANGLE |
120º STANDARD |
| IP RATING |
IP 22 |
| CUTTABLE |
EVERY 3 LED / 25mm |
| NUMBER OF LED |
120 EA/M (600 LEDs) |
| MAX IN SERIES |
3 Metre |
| WIDTH |
5mm |
| LENGTH |
5M |
| WORKING TEMPERATURE |
-20 °C ~ +60 °C |
| STORAGE TEMPERATURE |
-20 °C ~ 70 °C |
| WARRANTY |
5 YEAR |
ITEM CODE:
SA 78346
SA B-Mini Zigzag 120 12V Green (7.2W/M, 5 Metre/roll)
25 in stock
| 1 - 9 | $32.77 |
| 10 + | $30.84 |
$32.77 Excl. GST
| Weight | 84 g |
|---|---|
| Dimensions | 5000 × 5 × 1.5 mm |
| POWER |
7.2W |
| VOLTAGE |
DC 12V |
| CURRENT(A) |
0.6A |
| LUMINOUS FLUX |
360-468 lm |
| EFFICIENCY |
65lm/W |
| COLOUR |
GREEN |
| VIEWING ANGLE |
120º STANDARD |
| IP RATING |
IP 22 |
| CUTTABLE |
EVERY 3 LED / 25mm |
| NUMBER OF LED |
120 EA/M (600 LEDs) |
| MAX IN SERIES |
5 Metre |
| WIDTH |
5mm |
| LENGTH |
5M |
| WORKING TEMPERATURE |
-20 °C ~ +60 °C |
| STORAGE TEMPERATURE |
-20 °C ~ 70 °C |
| WARRANTY |
5 YEAR |
ITEM CODE:
SA 78347
SA B-Mini Zigzag 120 12V Yellow (7.2W/M, 5 Metre/roll)
20 in stock
| 1 - 9 | $38.48 |
| 10 + | $36.22 |
$38.48 Excl. GST
| Weight | 84 g |
|---|---|
| Dimensions | 5000 × 5 × 1.5 mm |
| POWER |
7.2W |
| VOLTAGE |
DC 12V |
| CURRENT(A) |
0.6A |
| EFFICIENCY |
15lm/W |
| COLOUR |
YELLOW |
| CRI |
80 |
| VIEWING ANGLE |
120º STANDARD |
| IP RATING |
IP 22 |
| CUTTABLE |
EVERY 3 LED / 25mm |
| NUMBER OF LED |
120 EA/M (600 LEDs) |
| MAX IN SERIES |
3 Metre |
| WIDTH |
5mm |
| LENGTH |
5M |
| WORKING TEMPERATURE |
-20 °C ~ +60 °C |
| STORAGE TEMPERATURE |
-20 °C ~ 70 °C |
| WARRANTY |
5 YEAR |

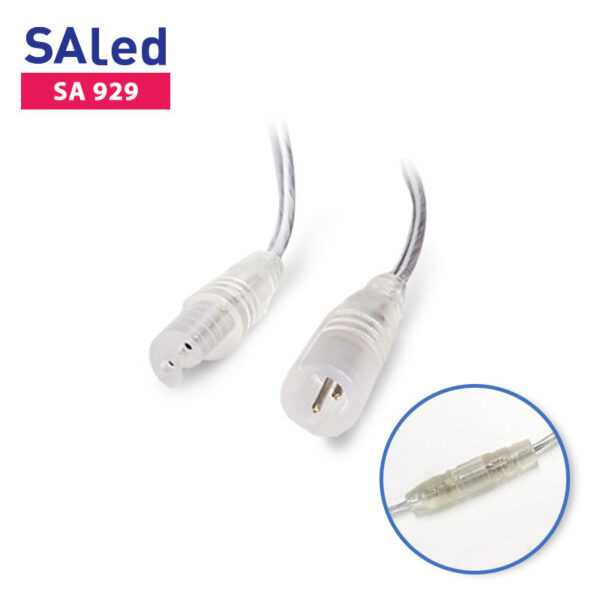

Key Features & Benefits
- Item Code: SA 929
- Warning: Only for Silicon coated LED Strips
- 2 Pin Weatherproof Connector sets x1
Additional information
| Weight | 7 g |
|---|---|
| Dimensions | 75 × 95 mm |
| NUMBER OF WAYS |
2 |
| WAY TO CONNECT |
Male and Female |
| MATERIAL |
PVC Plastic(External) |
| TOTAL LENGTH |
115mm |
Description
