SA B-FN 128 LED Strip 24V 4000K IP20 (11.52W/M, 5Metre/Roll) Original price was: $27.43.Current price is: $21.65. Excl. GST
Back to products
SA N2-4 LED Neon S-Type Track 500mm $19.23 Excl. GST
Sale
11.52W
24V
3000K
Click to enlarge

SA B-FN 128 LED Strip 24V 3000K IP20 (11.52W/M, 5Metre/Roll)

ITEM CODE: SA 11372

Original price was: $27.43.Current price is: $21.65. Excl. GST

20 in stock

1 + $21.65
Find suitable power supplier ? (click)
Add to wishlist
Compare

DOWNLOADS

Check out the latest product specifications and guides.

Product Specification

Installation Guide

IES File

Power Calculator

Power Calculator

Easy to estimate your power supply needs.

Our power calculator helps you determine the power supply needed for your LED light projects.

*Simply answer the questions below, and you'll receive a quick recommendation.

Enter the required number of the LEDs or Metre

METRE

Where will the power supplies be installed?

e.g) Strip or Neon Flex : 8 Metres

Must Have Items (Accessories)

LED WIRE UL 18AWG RED WHITE(50M/Roll)
Compare
Quick view
ITEM CODE: SA 917

LED Wire UL 22 AWG Red & White (50M/Roll)

169 in stock

Original price was: $41.62.Current price is: $34.68. Excl. GST
Add to cart
Weight 1.217 g
Dimensions 163 × 163 × 45 mm
STANDARD

22 AWG
LENGTH

50 Metre
NUMBER OF CONDUCTOR

2
NO & DIA CONDUCTOR

41 / 0.16 mm
INSULATION DIA(mm)

1.62 ± 0.05mm
LED WIRE 22AWG 2C NUDE (50M/Roll)
Compare
Quick view
ITEM CODE: SA 9171

LED Wire 22AWG 2C Nude (50M/Roll)

355 in stock

Original price was: $42.62.Current price is: $35.52. Excl. GST
Add to cart
Weight 0.7 g
Dimensions 165 × 165 × 46 mm
STANDARD

22 AWG
NUMBER OF CONDUCTOR

2
LENGTH

50 Metre
NO & DIA CONDUCTOR

17 / 0.16mm
INSULATION DIA(mm)

1.62 ± 0.05mm
Compare
Quick view
ITEM CODE: SA 9815

SA B-LED Strip Connector_Strip to Strip for 10mm (10 Pack)

20 in stock

Original price was: $4.64.Current price is: $3.10. Excl. GST
Add to cart
Weight 0.023 g
Dimensions 5 × 15 × 15 mm
Compare
Quick view
ITEM CODE: SA 9825

SA B-LED Strip Connector_Wire one end for 10mm (10 Pack)

23 in stock

Original price was: $6.79.Current price is: $4.52. Excl. GST
Add to cart
Weight 0.023 g
Dimensions 5 × 15 × 15 mm
Compare
Quick view
ITEM CODE: SA 9835

SA B-LED Strip Connector_Wire both ends for 10mm (10 Pack)

13 in stock

Original price was: $11.79.Current price is: $7.86. Excl. GST
Add to cart
Weight 0.023 g
Dimensions 5 × 15 × 15 mm

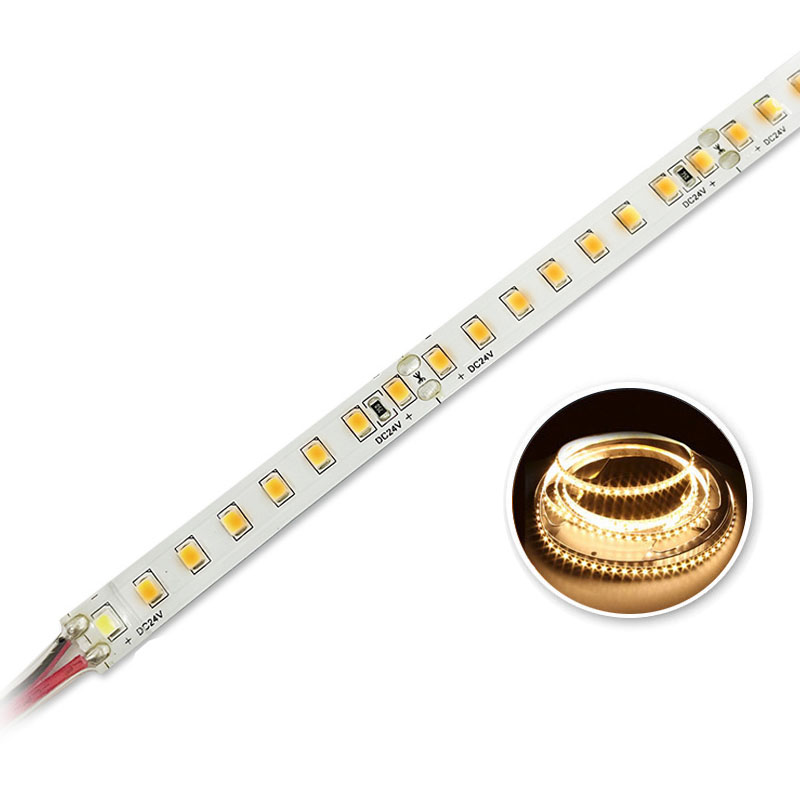

Key Features & Benefits

  • Item Code: SA 11372
  • LED Type: 2835T LED Chip
  • Fast and easy installation with top hat shape clips
  • Up to 150LM/W- High-efficiency strip
  • NON-Weatherproof type(IP20)
  • Cuttable each 8 LEDs
  • Dimmer and DALI Compatibility
  • 5 Years Warranty
Additional information
Weight 0.14 g
Dimensions 5000 × 10 × 2.5 mm
POWER

11.52W
VOLTAGE

DC 24V
CURRENT(A)

0.48A
LUMINOUS FLUX

1635lm
CCT(K)

3000K
CRI

90
VIEWING ANGLE

120º STANDARD
IP RATING

IP 20
CUTTABLE

EVERY 8 LED / 62.5mm
NUMBER OF LED

128 EA/M ( 640 LEDs)
MAX IN SERIES

5 Metre
WIDTH

10mm
LENGTH

5M
WORKING TEMPERATURE

-20 °C ~ +60 °C
STORAGE TEMPERATURE

-20 °C ~ 70 °C
WARRANTY

5 YEAR

Description

MAX IN SERIES

5 Metre

*Up to 5 Metre in a single series

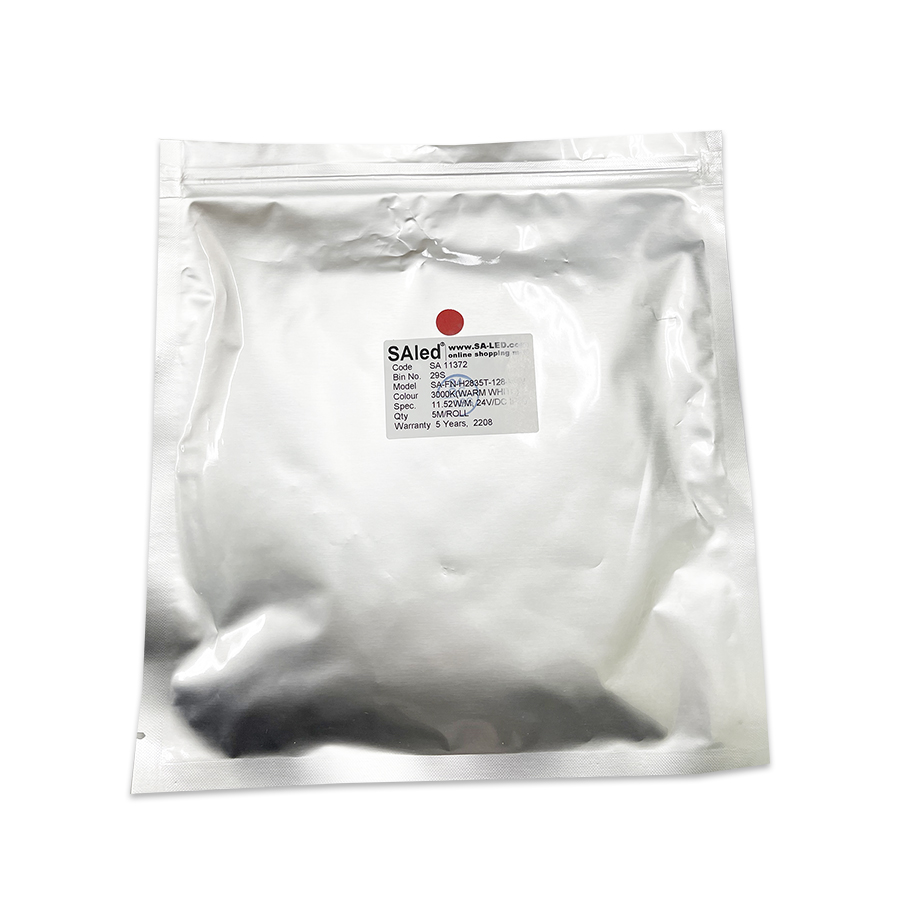

PACKING SPECIFICATION

BAG

CARTON

Pack

5Metre/bag

–

Dimension(L x W x h)

190x160x20mm

–

Weight(g)

100g

–
