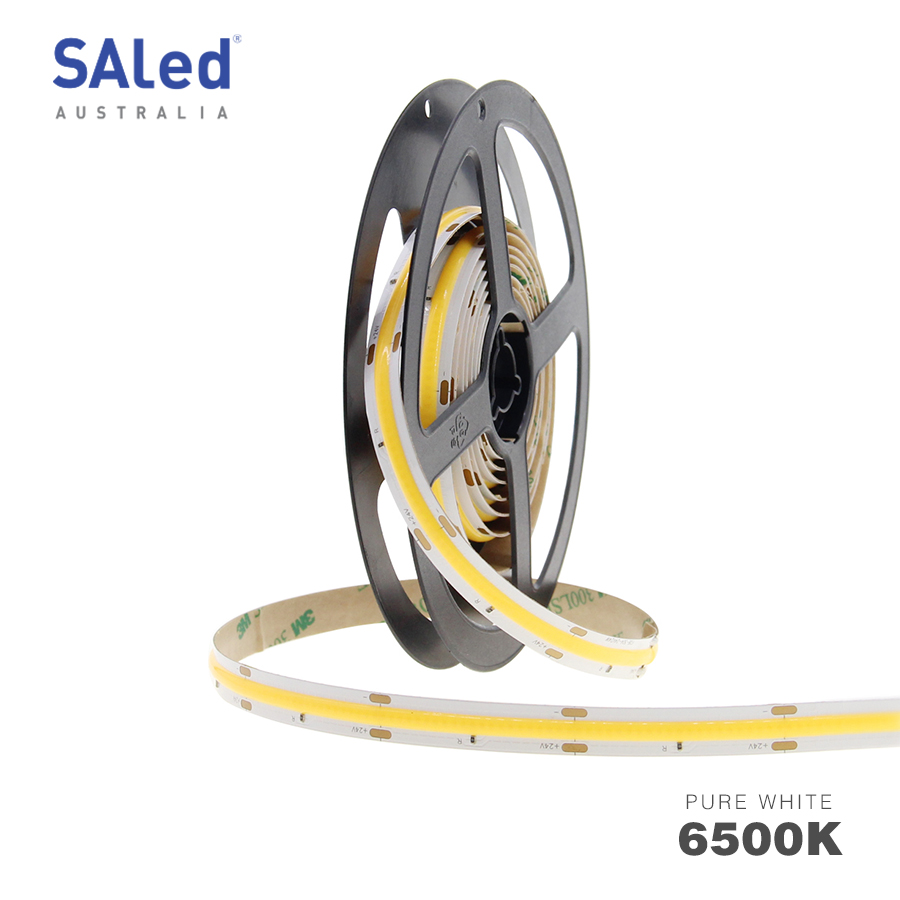

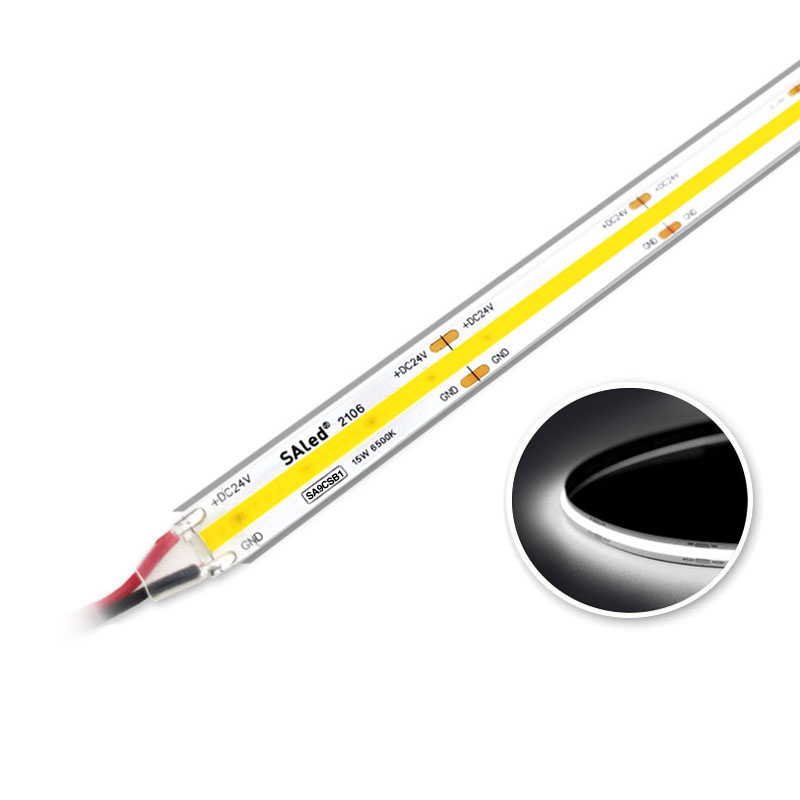

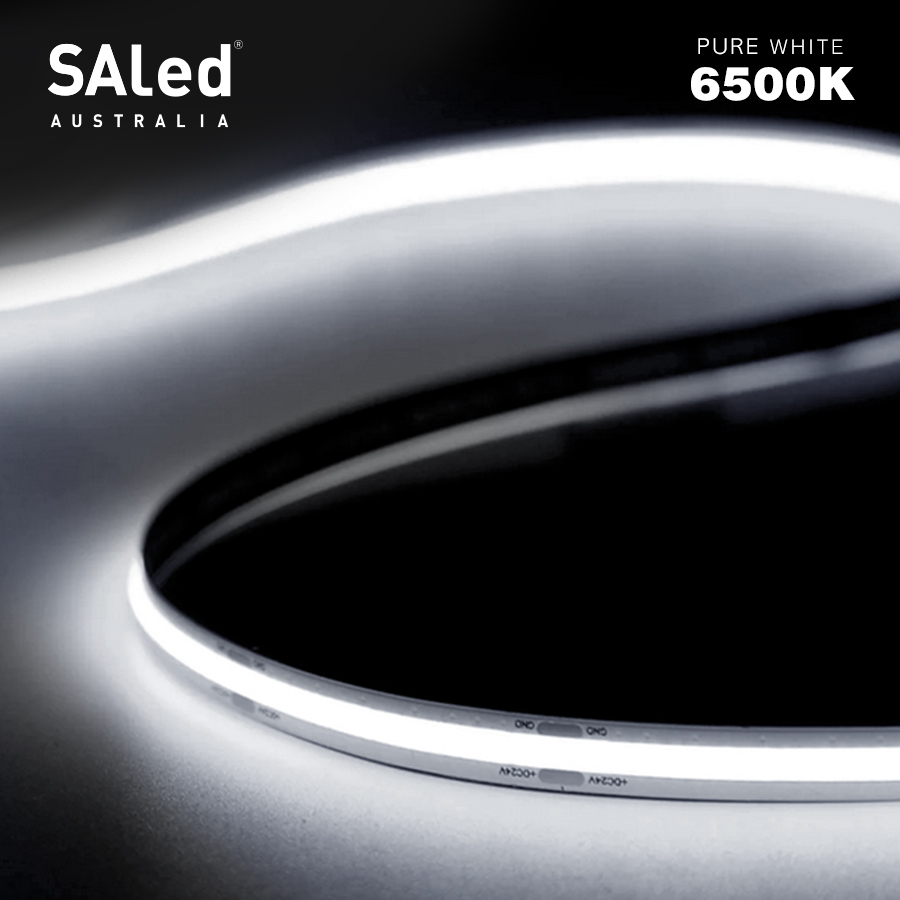

SA W-COB LED Strip 24V 6500K IP20 (15W/M, 5Metre/Roll)

ITEM CODE: SA 9CSB1

Original price was: $40.65.Current price is: $27.95. Excl. GST

82 in stock

1 - 9 $27.95
10 + $26.30
Find suitable power supplier ? (click)
Add to wishlist
Compare

DOWNLOADS

Check out the latest product specifications and guides.

Product Specification

Installation Guide

IES File

Power Calculator

Power Calculator

Easy to estimate your power supply needs.

Our power calculator helps you determine the power supply needed for your LED light projects.

*Simply answer the questions below, and you'll receive a quick recommendation.

Enter the required number of the LEDs or Metre

METRE

Where will the power supplies be installed?

e.g) Strip or Neon Flex : 8 Metres

Must Have Items (Accessories)

LED WIRE UL 18AWG RED WHITE(50M/Roll)
Compare
Quick view
ITEM CODE: SA 917

LED Wire UL 22 AWG Red & White (50M/Roll)

169 in stock

Original price was: $41.62.Current price is: $34.68. Excl. GST
Add to cart
Weight 1.217 g
Dimensions 163 × 163 × 45 mm
STANDARD

22 AWG
LENGTH

50 Metre
NUMBER OF CONDUCTOR

2
NO & DIA CONDUCTOR

41 / 0.16 mm
INSULATION DIA(mm)

1.62 ± 0.05mm
LED WIRE 22AWG 2C NUDE (50M/Roll)
Compare
Quick view
ITEM CODE: SA 9171

LED Wire 22AWG 2C Nude (50M/Roll)

356 in stock

Original price was: $42.62.Current price is: $35.52. Excl. GST
Add to cart
Weight 0.7 g
Dimensions 165 × 165 × 46 mm
STANDARD

22 AWG
NUMBER OF CONDUCTOR

2
LENGTH

50 Metre
NO & DIA CONDUCTOR

17 / 0.16mm
INSULATION DIA(mm)

1.62 ± 0.05mm
For 10mm
Compare
Quick view
ITEM CODE: SA 9812

SA W-COB LED Strip Connector_Strip to Strip for 10mm (10 Pack)

20 in stock

Original price was: $10.00.Current price is: $6.67. Excl. GST
Add to cart
Weight 0.015 g
Dimensions 10 × 4 mm
APPLICATION

For 10mm
For 10mm
Compare
Quick view
ITEM CODE: SA 9822

SA W-COB LED Strip Connector_Wire one end for 10mm (10 Pack)

31 in stock

Original price was: $15.36.Current price is: $10.24. Excl. GST
Add to cart
Weight 0.015 g
Dimensions 16.5 × 10 × 4 mm
APPLICATION

For 10mm
For 10mm
Compare
Quick view
ITEM CODE: SA 9832

SA W-COB LED Strip Connector_Wire both ends for 10mm (10 Pack)

31 in stock

Original price was: $25.00.Current price is: $16.67. Excl. GST
Add to cart
Weight 0.04 g
Dimensions 17.6 × 10 × 4 mm
APPLICATION

For 10mm
For 10mm
Compare
Quick view
ITEM CODE: SA 9842

SA W-COB LED Strip Corner Connector_Strip to Strip for 10mm (10 Pack)

17 in stock

$18.46 Excl. GST
Add to cart
Weight 15 g
Dimensions 90 × 130 mm
APPLICATION

For 10mm

Key Features & Benefits

  • Item Code: SA 9CSB1
  • High Efficiency up to 110Lm/W
  • Chips-on-board design, dot free even without any profiles
  • Excellent lighting with SDCM in 3-step
  • 180° wide beam angle
  • Dimmer and DALI Compatibility
  • Flexible with 3M back tape, easy for installation 5
  • 5 Years Warranty
Additional information
Weight 0.389 g
Dimensions 5000 × 10 × 1.6 mm
POWER

15W
VOLTAGE

DC 24V
CURRENT(A)

0.625A
LUMINOUS FLUX

1,650 lm
EFFICIENCY

110lm/W
CCT(K)

6500K
CRI

80
VIEWING ANGLE

180°
IP RATING

IP 20
CUTTABLE

45.45mm
NUMBER OF LED

528 EA/M (2,640LEDs)
MAX IN SERIES

5 Metre
WIDTH

10mm
LENGTH

5M
WORKING TEMPERATURE

-20 °C ~ 40 °C
STORAGE TEMPERATURE

-20 ℃ ~ 45 ℃
WARRANTY

5 YEAR

Description

MAX IN SERIES

5 Metre

*Up to 5 Metre in a single series

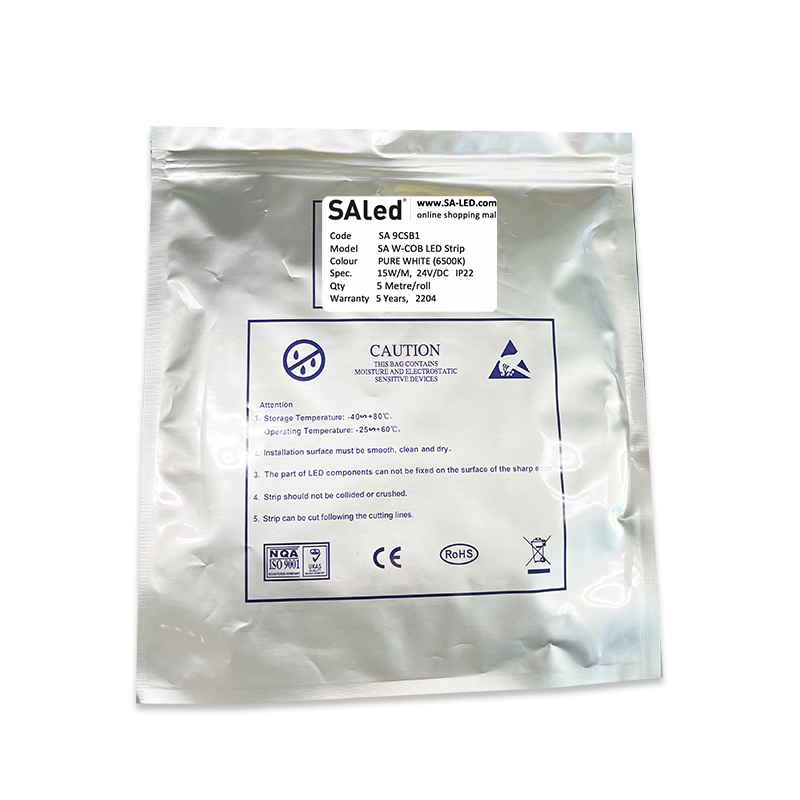

PACKING SPECIFICATION

.

BAG

CARTON

Pack

5Metre/bag

–

Dimension(L x W x h)

160x180x20mm

–

Weight(g)

500g

–
