ITEM CODE: SA 9CUE1

SA W-COB LED Strip 24V 6500K IP20 (10W/M, 5Metre/Roll)

69 in stock

1 - 9 $27.05
10 + $25.46
$27.05 Excl. GST
Add to cart
Weight 0.389 g
Dimensions 5000 × 8 × 1.6 mm
POWER

10W
VOLTAGE

DC 24V
CURRENT(A)

0.417A
LUMINOUS FLUX

1050lm
EFFICIENCY

105lm/W
CCT(K)

6500K
CRI

80
VIEWING ANGLE

180°
IP RATING

IP 20
CUTTABLE

11.36mm
NUMBER OF LED

528 EA/M (2,640LEDs)
MAX IN SERIES

5 Metre
WIDTH

8mm
WORKING TEMPERATURE

-20 °C ~ 40 °C
STORAGE TEMPERATURE

-20 ℃ ~ 45 ℃
WARRANTY

5 YEAR

SA W-COB LED Strip 12V 6500K IP20 (10W/M, 5Metre/Roll)

ITEM CODE: SA 9CUG1

$26.25 Excl. GST

64 in stock

1 - 9 $26.25
10 + $24.71
Find suitable power supplier ? (click)
Add to wishlist
Compare

DOWNLOADS

Check out the latest product specifications and guides.

Product Specification

Installation Guide

IES File

Power Calculator

Power Calculator

Easy to estimate your power supply needs.

Our power calculator helps you determine the power supply needed for your LED light projects.

*Simply answer the questions below, and you'll receive a quick recommendation.

Enter the required number of the LEDs or Metre

METRE

Where will the power supplies be installed?

e.g) Strip or Neon Flex : 8 Metres

Must Have Items (Accessories)

LED WIRE UL 18AWG RED WHITE(50M/Roll)
Compare
Quick view
ITEM CODE: SA 917

LED Wire UL 22 AWG Red & White (50M/Roll)

230 in stock

$34.68 Excl. GST
Add to cart
Weight 1.217 g
Dimensions 163 × 163 × 45 mm
STANDARD

22 AWG
LENGTH

50 Metre
NUMBER OF CONDUCTOR

2
NO & DIA CONDUCTOR

41 / 0.16 mm
INSULATION DIA(mm)

1.62 ± 0.05mm
LED WIRE 22AWG 2C NUDE (50M/Roll)
Compare
Quick view
ITEM CODE: SA 9171

LED Wire 22AWG 2C Nude (50M/Roll)

386 in stock

$35.52 Excl. GST
Add to cart
Weight 0.7 g
Dimensions 165 × 165 × 46 mm
STANDARD

22 AWG
NUMBER OF CONDUCTOR

2
LENGTH

50 Metre
NO & DIA CONDUCTOR

17 / 0.16mm
INSULATION DIA(mm)

1.62 ± 0.05mm
For 8mm
Compare
Quick view
ITEM CODE: SA 9811

SA W-COB LED Strip Connector_Strip to Strip for 8mm (10 Pack)

69 in stock

$6.67 Excl. GST
Add to cart
Weight 0.015 g
Dimensions 8 × 4 mm
APPLICATION

For 8mm
For 8mm
Compare
Quick view
ITEM CODE: SA 9821

SA W-COB LED Strip Connector_Wire one end for 8mm (10 Pack)

15 in stock

$10.24 Excl. GST
Add to cart
Weight 0.015 g
Dimensions 16.5 × 8 × 4 mm
APPLICATION

For 8mm
For 8mm
Compare
Quick view
ITEM CODE: SA 9831

SA W-COB LED Strip Connector_Wire both ends for 8mm (10 Pack)

49 in stock

$16.67 Excl. GST
Add to cart
Weight 0.04 g
Dimensions 17.6 × 8 × 4 mm
APPLICATION

For 8mm
For 8mm
Compare
Quick view
ITEM CODE: SA 9841

SA W-COB LED Strip Corner Connector_Strip to Strip for 8mm (10 Pack)

29 in stock

$18.46 Excl. GST
Add to cart
Weight 12 g
Dimensions 90 × 130 mm
APPLICATION

For 8mm
Compare
Quick view
ITEM CODE: SA 926-J

2 WAGO Connectors 1 Jar (100 connectors)

558 in stock

Box -100 Connectors $0.32 / each
$32.01 Excl. GST
Add to cart
Weight 170.8 g
Dimensions 65 × 65 × 120 mm
BRAND

Wago
NUMBER OF WAYS

2
TERMINATION METHOD

SPRING CAGE
MAX. TEMPERATURE

105 Degree
WIRE RANGE

AWG 24-12

Key Features & Benefits

  • Item Code: SA 9CUG1
  • High Efficiency up to 105Lm/W
  • Chips-on-board design, dot free even without any profiles
  • Excellent lighting with SDCM in 3-step
  • 180° wide beam angle
  • Dimmer and DALI Compatibility
  • Flexible with 3M back tape, easy for installation
  • 5 Years Warranty
Additional information
Weight 0.085 g
Dimensions 5000 × 8 × 1.6 mm
POWER

10W
VOLTAGE

DC 12V
CURRENT(A)

0.833A
LUMINOUS FLUX

1050lm
EFFICIENCY

105lm/W
CCT(K)

6500K
CRI

80
VIEWING ANGLE

180°
IP RATING

IP 20
CUTTABLE

22.73mm
NUMBER OF LED

528 EA/M (2,640LEDs)
MAX IN SERIES

5 Metre
WIDTH

8mm
LENGTH

5M
WORKING TEMPERATURE

-20 °C ~ 40 °C
STORAGE TEMPERATURE

-20 ℃ ~ 45 ℃
WARRANTY

5 YEAR

Description

MAX IN SERIES

5 Metre

*Up to 5 Metre in a single series

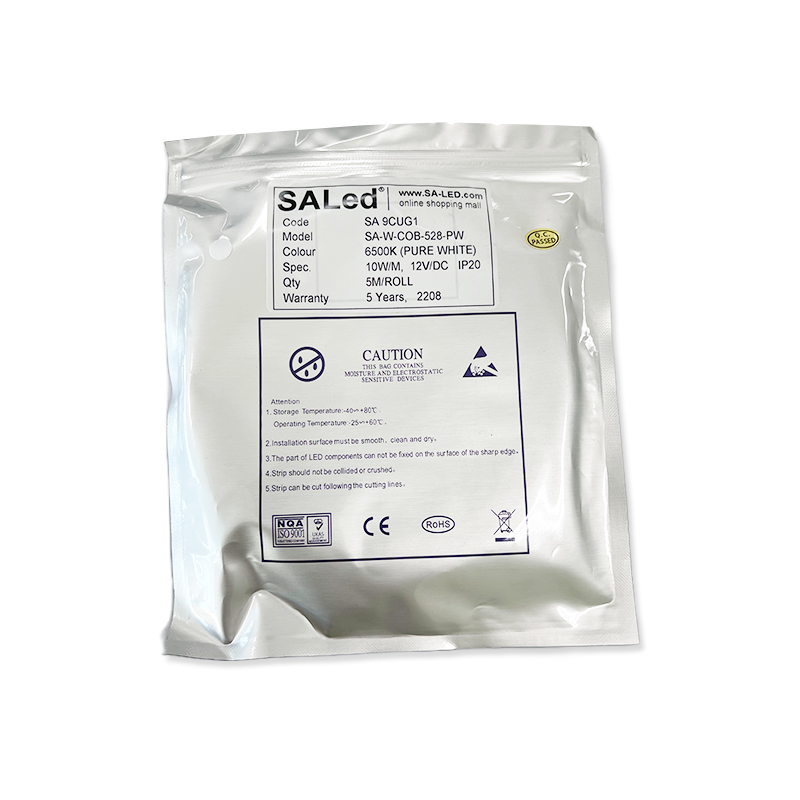

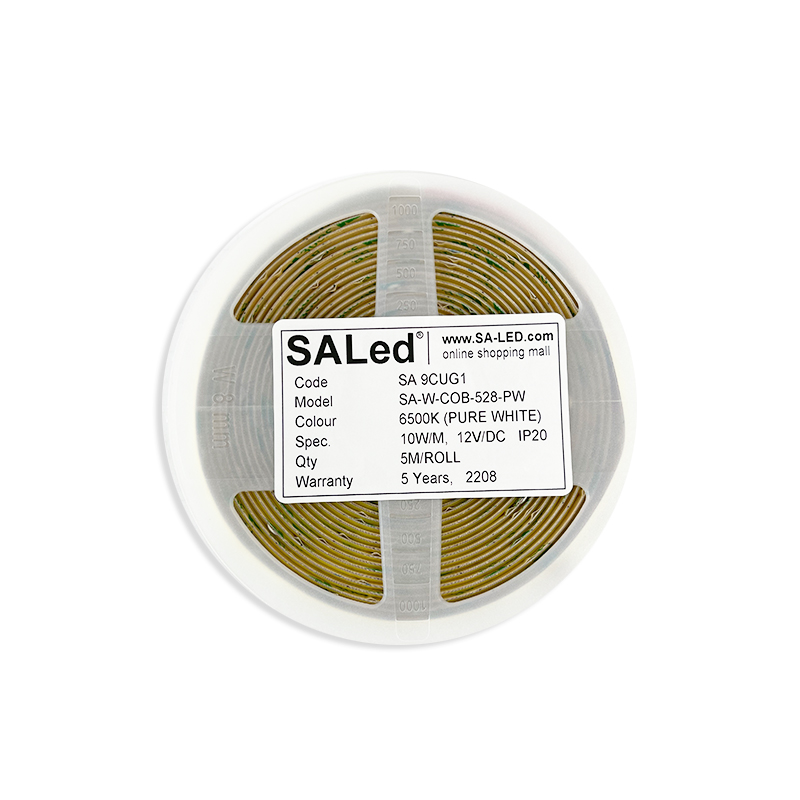

PACKING SPECIFICATION

BAG

CARTON

Pack

5Metre/bag

–

Dimension(L x W x h)

160x180x20mm

–

Weight(g)

85g

–
