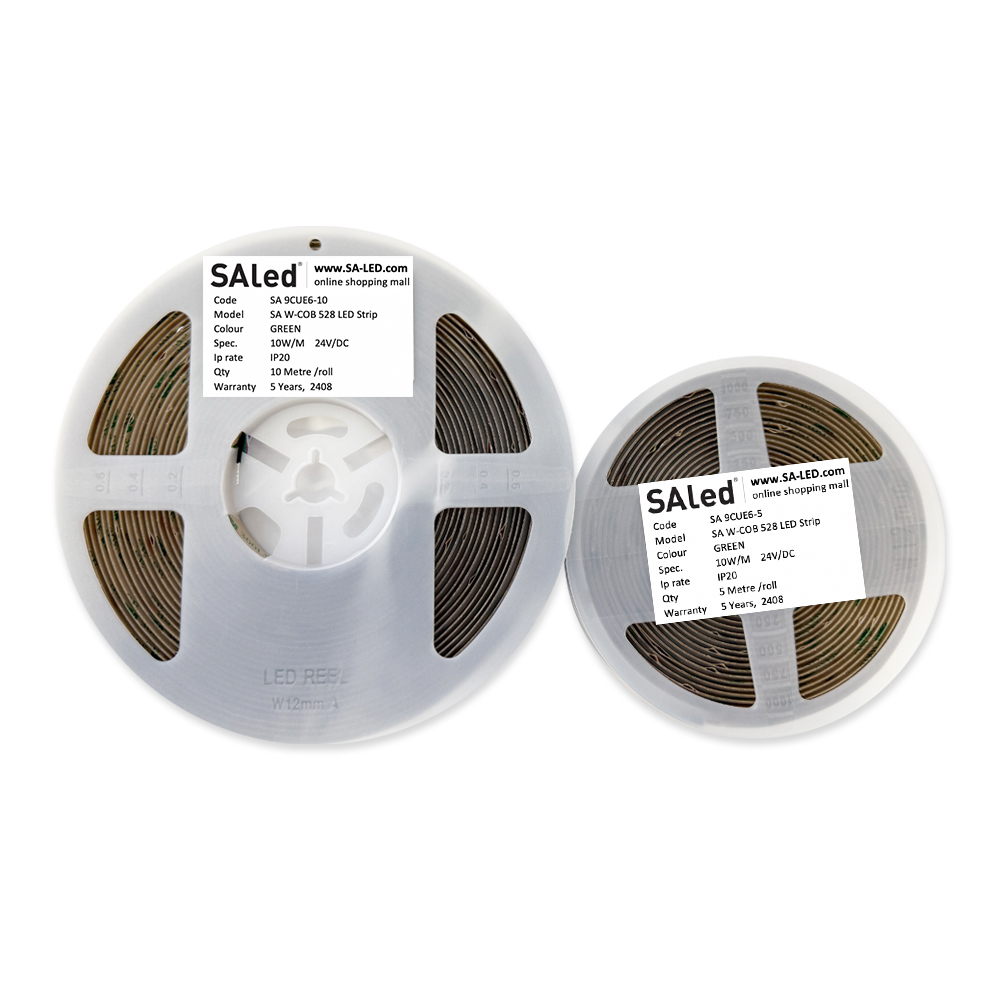

SA W-COB LED Strip 24V GREEN IP22 (10W/M, 5M/Roll, 10M/Roll)
| Item Code | Price | Stock |
| SA 9CUE6-5 | $ 29.68 | 27 |
| SA 9CUE6-10 | $ 59.36 | 4 |
$29.68 – $59.36 Excl. GST
DOWNLOADS
Check out the latest product specifications and guides.
Product Specification
Installation Guide
IES File
LED Layout for Lightbox
Power Calculator
Power Calculator
Easy to estimate your power supply needs.
Our power calculator helps you determine the power supply needed for your LED light projects.
*Simply answer the questions below, and you'll receive a quick recommendation.
Enter the required number of the LEDs or Metre
METREWhere will the power supplies be installed?
e.g) Strip or Neon Flex : 8 Metres
Must Have Items (Accessories)
SA Angle Aluminum LED Channel Profile 16 x 16 x 2000mm (4 channels / pack)
37 in stock
SA Bold Aluminum LED Channel Profile 16 x 12 x 2000mm (4 channels / pack)
40 in stock
SA Bold Aluminum LED Channel Profile 17 x 15 x 2000mm (4 Channels / Pack)
46 in stock
SA Flat Aluminium LED Channel Profiles 17 x 9 x 2000mm (4 channels / pack)
Out of stock (ETA: End of JAN)
SA Hide Aluminum LED Channel Profile 25 x 9 x 2000mm (4 channels / pack)
28 in stock
LED Wire UL 18AWG Red & White (50M/Roll)
258 in stock
SA W-COB LED Strip Connector_Strip to Strip for 8mm (10 Pack)
44 in stock
SA W-COB LED Strip Connector_Wire one end for 8mm (10 Pack)
38 in stock
SA W-COB LED Strip Connector_Wire both ends for 8mm (10 Pack)
69 in stock
SA W-COB LED Strip Corner Connector_Strip to Strip for 8mm (10 Pack)
10 in stock
2 WAGO Connectors 1 Jar (100 connectors)
130 in stock
| Box -100 Connectors | $0.44 / each |
Key Features & Benefits
- Item Code: SA 9CUE6
- Efficiency up to 105Lm/W
- Chips-on-board design, dot-free even without any profiles
- Excellent lighting with SDCM in 3-step
- 180° wide beam angle
- Dimmer and DALI Compatibility
- Flexible with 3M back tape, easy for installation
- 5 Years Warranty
| Weight | 0.389 g |
|---|---|
| Dimensions | 5000 × 8 × 1.6 mm |
| POWER |
10W |
| VOLTAGE |
DC 24V |
| CURRENT(A) |
0.417A |
| LUMINOUS FLUX |
840lm |
| EFFICIENCY |
84lm/W |
| COLOUR |
GREEN |
| CRI |
80 |
| VIEWING ANGLE |
180° |
| IP RATING |
IP 22 |
| CUTTABLE |
11.36mm |
| NUMBER OF LED |
528 EA/M (2,640LEDs) |
| MAX IN SERIES |
5 Metre |
| WIDTH |
8mm |
| LENGTH |
5M ,10M |
| WORKING TEMPERATURE |
-20 °C ~ 40 °C |
| STORAGE TEMPERATURE |
-20 ℃ ~ 45 ℃ |
| WARRANTY |
5 YEAR |
Description
MAX IN SERIES
5 Metre
*Up to 5 Metre in a single series

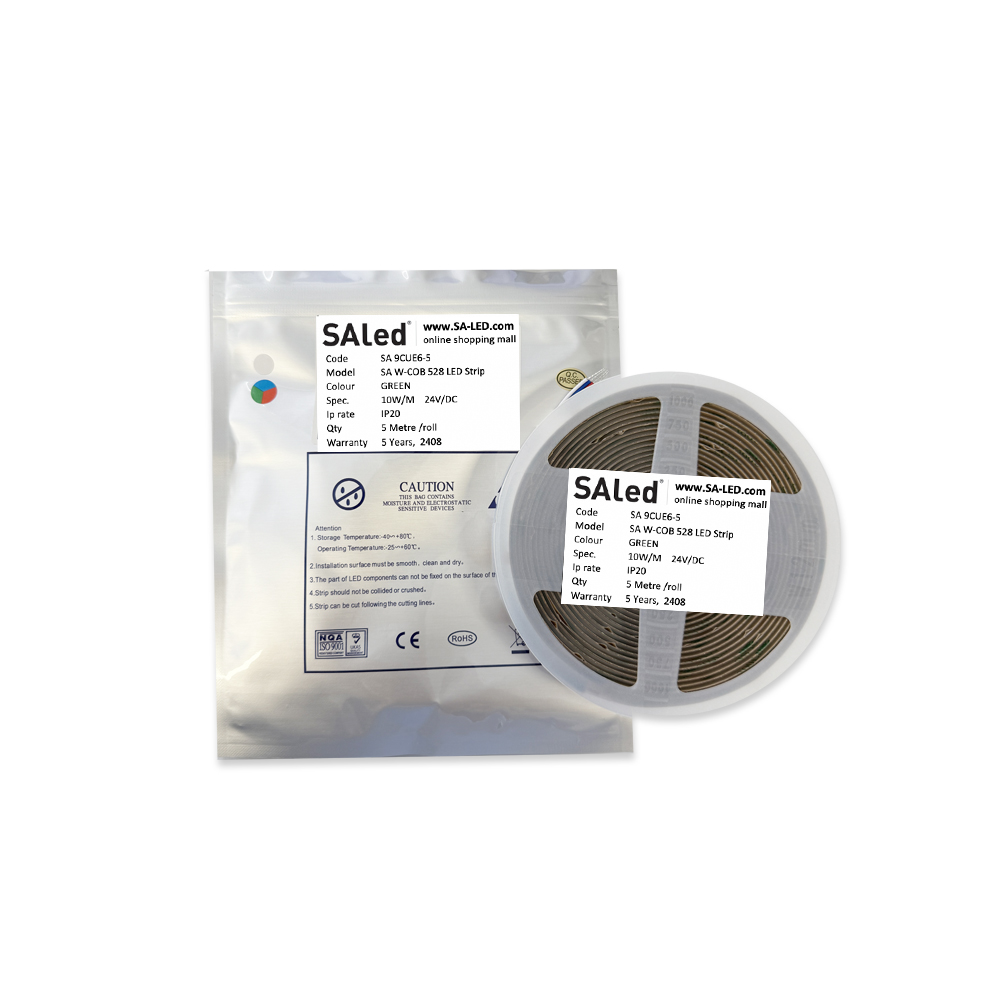

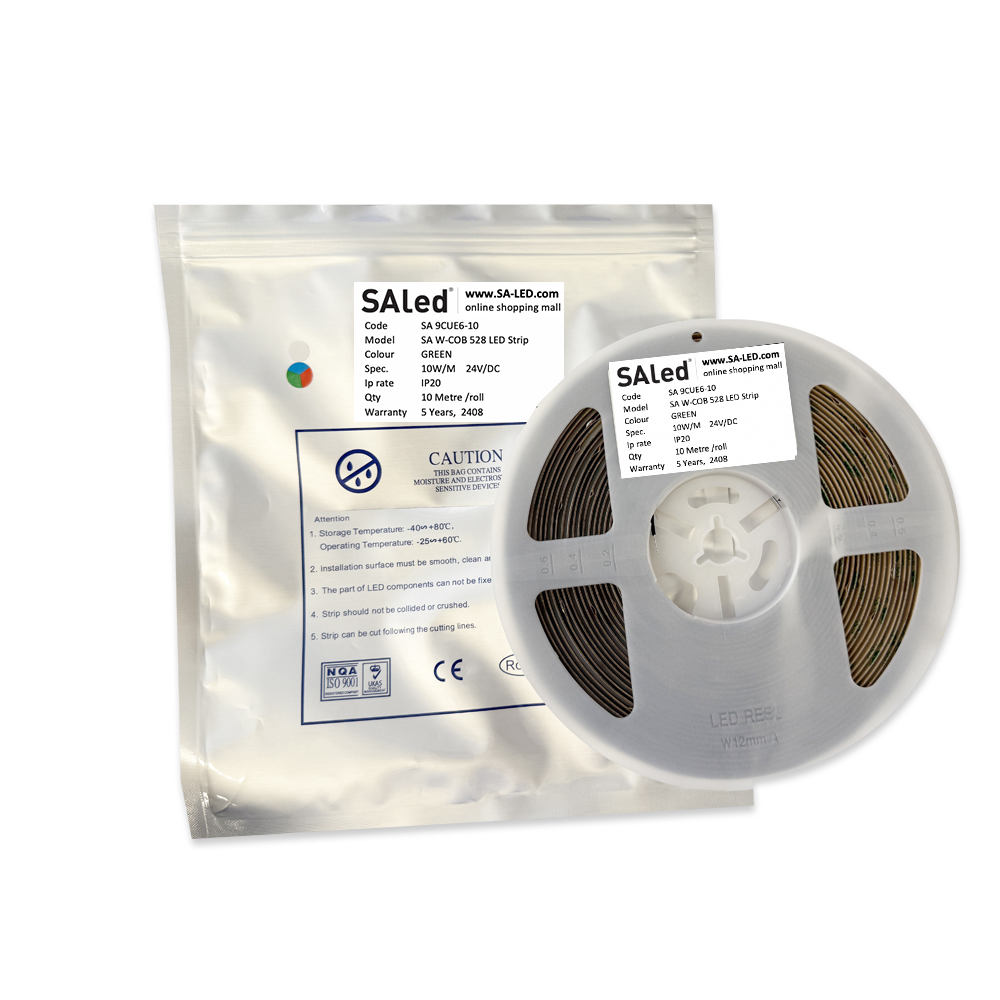

PACKING SPECIFICATION
BAG |
CARTON |
|
|---|---|---|
|
Pack |
5Metre/bag | 10Metre/bag |
– |
|
Dimension(L x W x h) |
160x180x20mm | 210 x 235 x 20mm |
– |
|
Weight(g) |
85g | 120g |
– |
