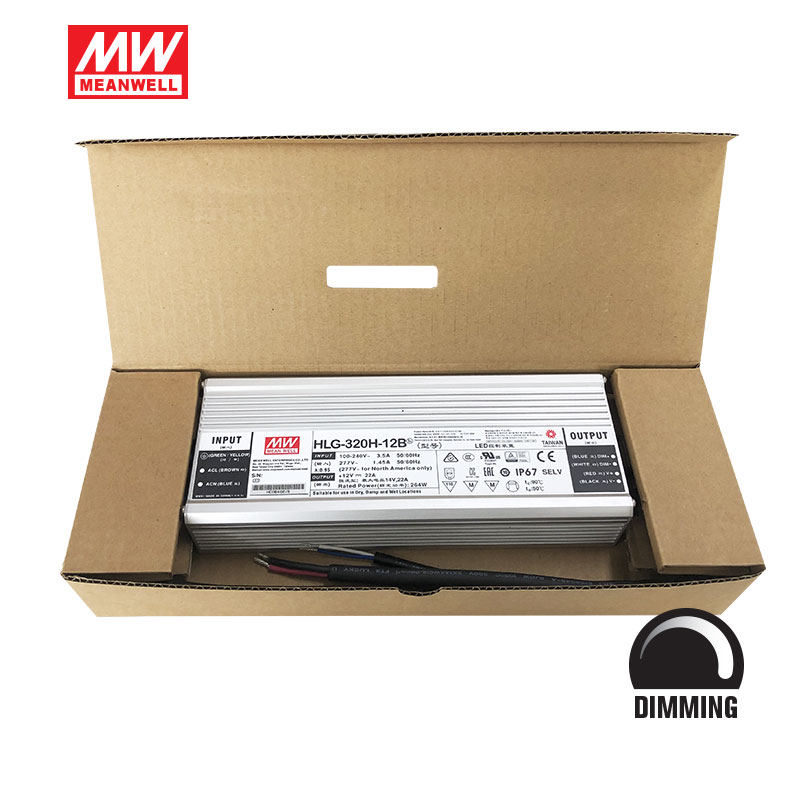

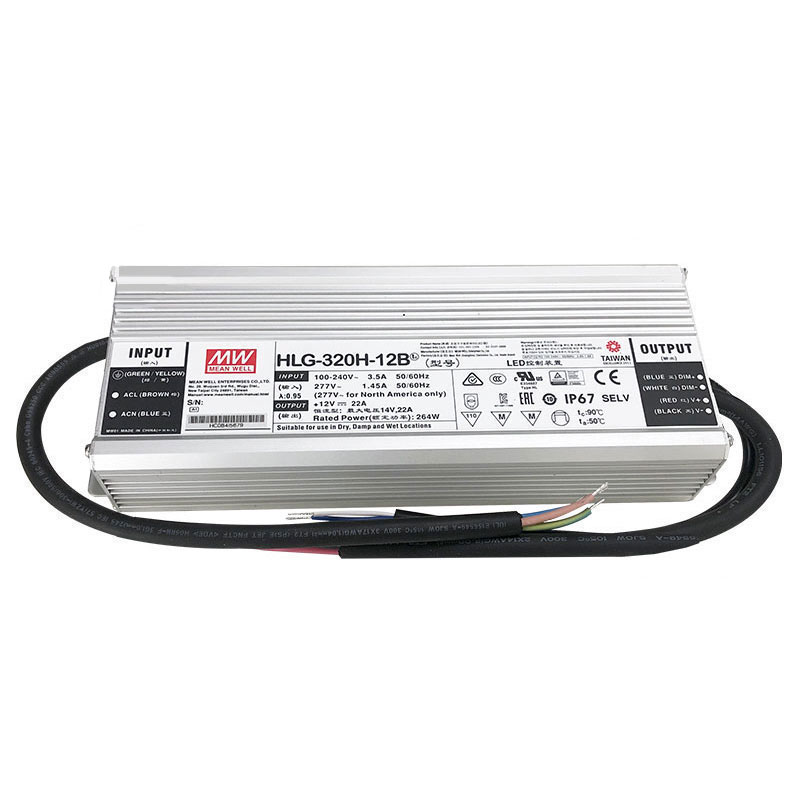

MEAN WELL HLG 320H 22A 12V without 3 pin plug (Dimming)

MEANWELL
ITEM CODE: MW 391

Original price was: $128.78.Current price is: $113.94. Excl. GST

Please purchase MW 392 alternatively.

Add to wishlist
Compare

DOWNLOADS

Check out the latest product specifications and guides.

Product Specification

Installation Guide

IES File

LED Layout for Lightbox

LED layout Designer

Must Have Items (Accessories)

240V LINE MAINS POWER PLUG
Compare
Quick view
ITEM CODE: SA 9111

240V Line Mains Power Plug

18 in stock

$4.69 Excl. GST
Add to cart
Weight 0.188 g
Dimensions 10 × 10 × 6 mm
INPUT VOLTAGE

220 – 250VAC
POWER HANDLING

2400W
MAX.LOAD CURRENT

10A
Compare
Quick view
ITEM CODE: SA 213

SA Dimming Switch

In stock

Original price was: $18.87.Current price is: $11.28. Excl. GST
Add to cart
Weight 16 g
Dimensions 225 × 22.5 × 48.6 mm
MAX MULTY CONTROL

30 LED DRIVERS
CONNECTION CALBE LENGTH

300 METRE

Key Features & Benefits:

  • Item Code: MW 391
  • MEANWELL HLG-320H-12
  • Function : 3 in-1 Dimming
  • IP67 rating for Indoor or Outdoor Installations
  • Built-in active PFC function
  • Works with SA-Dimming switch(SA 213)
  • Without 3 pin plug
  • 7 Years Warranty
Additional information
Weight 2.077 g
Dimensions 333 × 136 × 58 mm
BRAND

MEANWELL
POWER

264W
VOLTAGE

DC 12V
CURRENT(A)

22A
DIMMABLE

DIMMABLE
IP RATING

IP 67
PER CARTON

8 OFF
WARRANTY

7 YEAR

Description



MW 391 HLG 320H-22A 12V-WITHOUT-3-PINPLUG-(Dimming)





WARNING

  • Must be installed by a Licensed Electrician.
  • We recommanded to installed with a Junction box.

SA JUNCTION BOX

ITEM CODE : SA 944
    • Surface Mounted
    • Waterproof sealed plastic electrical enclosure switch Junction box.
    • Anti-corrosion, insulation and anti-impact.
    • Durability in use.

NOTE

  • Suitable for indoor use or outdoor use without direct sunlight exposure.

Description

  • Built-in active PFC function
  • High efficiency up to 90%
  • Protections: Short circuit/ Over current/ Over voltage/ Over temperature
  • Cooling by free air convection
  • Fully isolated aluminum case
  • Fully encapsulated with IP67 level (Suitable for indoor use or outdoor use without direct sunlight exposure)
  • Class II power uni
  • Compliance to worldwide safety regulations for lighting
  • Suitable for dry/ damp/ wet locations



– Work with SA Dimming Switch (SA 213)

Important Note

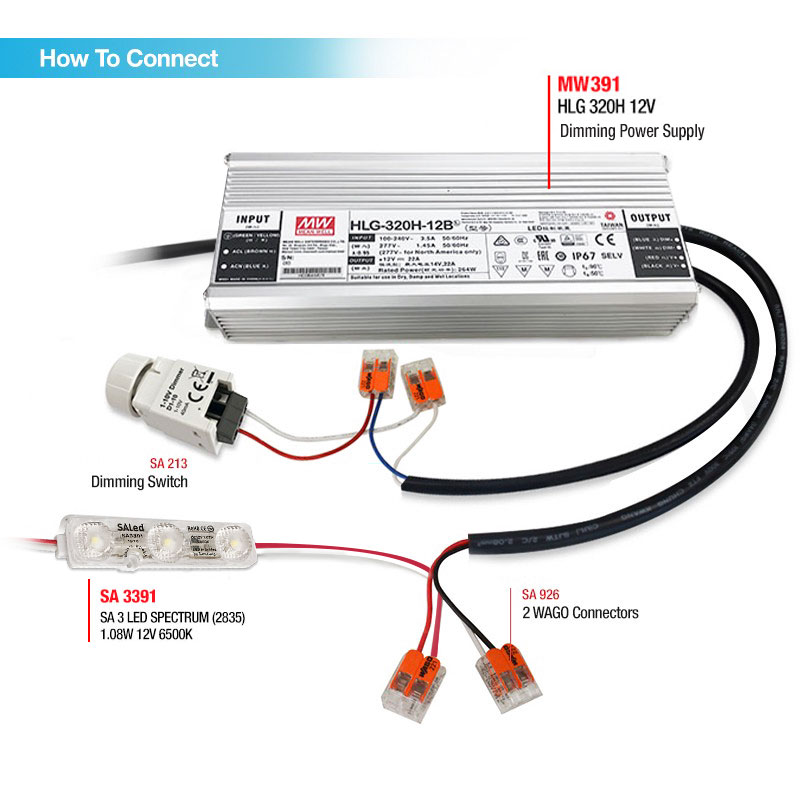

The dimming switch(SA213) only works with dimming power supplies, which has 4 wires. 2wires for LED light, 2 wires for dimming switch as per the photo above.
