SA NDR2018 Vertical LED Neon Flex 24V Warm White 3000K IP68 (15.36W/M)
$465.05 – $929.66 Excl. GST
SA NDR2018 Vertical LED Neon Flex 24V Blue IP68 (15.36W/M)
$465.05 – $929.66 Excl. GST
SA NDR2018 Vertical LED Neon Flex 24V Red IP68 (15.36W/M)
Click here to check all stock
| Item Code | Price | Stock |
| SA 10B-15M | $ 465.05 | 2 |
| SA 10B-30M | $ 929.66 | 2 |
$465.05 – $929.66 Excl. GST
DOWNLOADS
Check out the latest product specifications and guides.
Product Specification
Installation Guide
IES File
Power Calculator
Power Calculator
Easy to estimate your power supply needs.
Our power calculator helps you determine the power supply needed for your LED light projects.
*Simply answer the questions below, and you'll receive a quick recommendation.
Use one power supplier per single piece of neon flex over 20M.
Enter the required number of the LEDs or Metre
METREWhere will the power supplies be installed?
e.g) Strip or Neon Flex : 8 Metres
Must Have Items (Accessories)
ITEM CODE:
SA 914
LED Wire UL 18AWG Red & Black With PVC(50M/Roll)
159 in stock
Original price was: $80.40.$67.00Current price is: $67.00. Excl. GST
ITEM CODE:
SA 9422
ITEM CODE:
SA 947
ITEM CODE:
SA 10N
ITEM CODE:
SA 10L
ITEM CODE:
SA 10M
ITEM CODE:
SA 10Q
ITEM CODE:
SA 10R
ITEM CODE:
SA 95A5
ITEM CODE:
SA 926-J
2 WAGO Connectors 1 Jar (100 connectors)
533 in stock
| Box -100 Connectors | $0.32 / each |
$32.01 Excl. GST
Key Features & Benefits
- Item Code: SA 10B

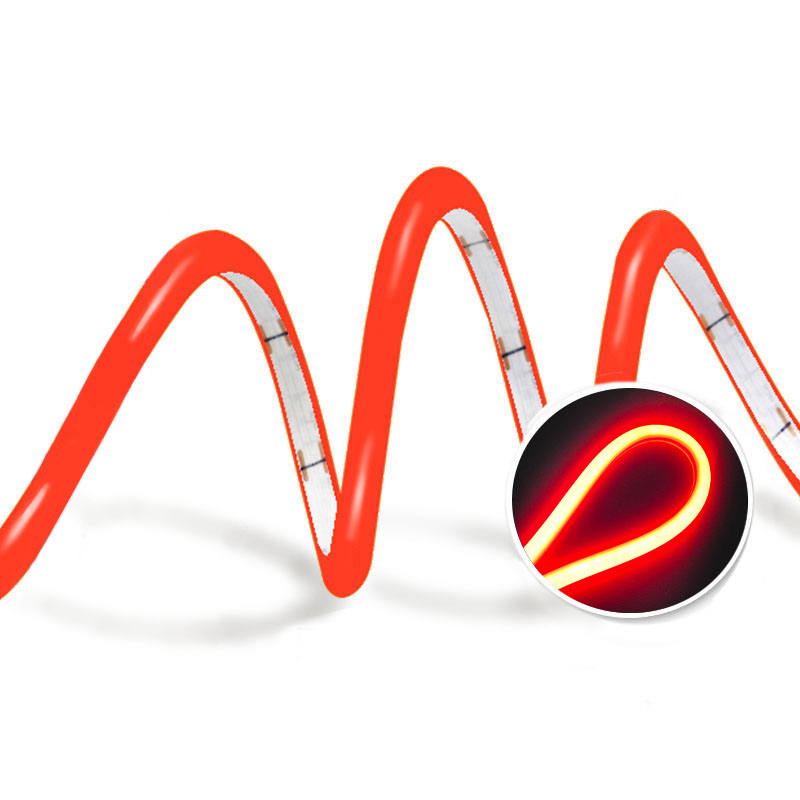

- Unique extrusion process and electronic design can be bent in a vertical way
- Adopting quality silicone material and one step moulding production technique
- Special extrusion workmanship, smart in size, good bending performance
- Making it easy to cut and join according to different applications.
- The dimming function works only
with HLG Dimmable power supplies. - Cutting mark by every 62.5mm(1.97 inches)
- 5 Year Warranty
Dimension
Additional information
| Weight | 875 g |
|---|---|
| Dimensions | 5000 × 11 × 12 mm |
| POWER |
15.36W |
| VOLTAGE |
DC 24V |
| CURRENT(A) |
0.625A |
| LUMINOUS FLUX |
290lm |
| EFFICIENCY |
20lm/W |
| COLOUR |
RED |
| CRI |
80 |
| VIEWING ANGLE |
156º |
| IP RATING |
IP 68 |
| DIMMABLE |
DIMMABLE, Dimmable with HLG Power Only |
| CUTTABLE |
62.5mm |
| LENGTH |
15M, 30M |
| WARRANTY |
5 YEAR |
Description

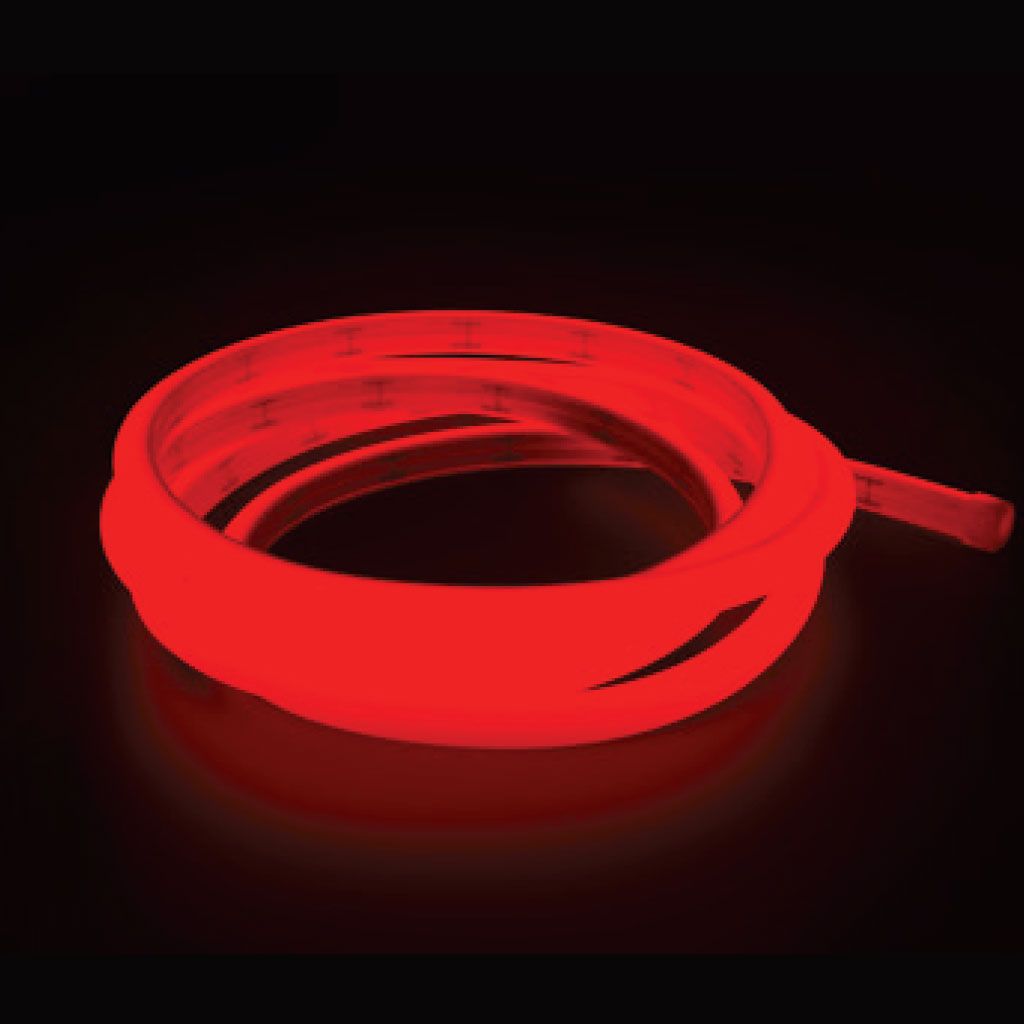

SA 10B NDR2018-VERTICAL-LED-NEONFLEX 24V-RED
 |
Special Note ROLL LENGTHS_Any claim for short supply will only be considered while |
| Problems | Reasons | Solutions |
|---|---|---|
| No illumination | No electricity supply | Ensure LED driver is working |
| Automatic power protection from the open or short circuit in output of the power supply | Fix the short circuit problem | |
| Wrong connection of power supply | ||
| Partial illumination | Using a switching mode power supply | Make it as follows: Don’t use switching mode power supplies |
| Wire connection mistake | Check connections | |
| Brightness of LED is inconsistent for inconsistent | Power overloaded | Replace with a power supply that delivers 125% of current required to power the product |
| Voltage drop due to exceeding max-in-series limit | Adhere to the max-in-series limit specified on the product page | |
| LED Flickering | Connection point fault | Fix bad connection point |
| Use a proper LED driver | Replace a new power supply |
*Note that should be cut and reconnected with end connectors for installation to avoid defects due to moisture penetration. The steps velow indicate are possible way of sealing the end:
Installation steps
 |
 |
 |
 |
| Cut the neon flex | Weld the wire to the PCB board | First put silicone glue inside of the plug, and quick connector then push into the neon flex |
Wipe off the excess glue and wait for the glue to solidify. |
|
Cutting Mark By Every 50 mm
|
VERTICAL LED NEON FLEX RED 24V (15.36W/M)_SA NDR2018
Important Note
Dimensions(mm)
